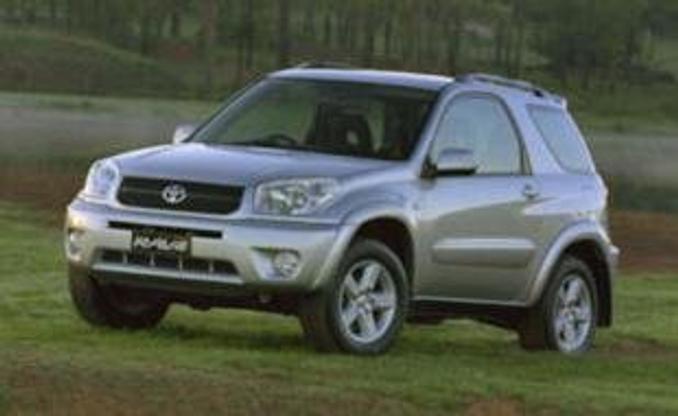

Toyota RAV4 2005

What's on this page

Toyota RAV4 2005

The 2005 Toyota RAV4 range of configurations is currently priced from $5,998.

The 2005 Toyota RAV4 carries a braked towing capacity of up to 1500 Kg, but check to ensure this applies to the configuration you're considering.

Toyota RAV4 2005 Price and Specs

The Toyota RAV4 2005 is currently available from $5,998 for the RAV4 Cruiser (4x4) up to $14,999 for the RAV4 CV Sport.

Pricing guides

$9,955
Based on 45 cars listed for sale in the last 6 months
Lowest Price
$5,998
Highest Price
$14,999
Toyota RAV4 Model Body Type Specs Price from Price to
Cruiser (4x4) SUV 2.4L ULP 4 SP AUTO $6,380 $8,910
Cruiser (4x4) SUV 2.4L ULP 5 SP MAN $7,700 $10,780
CV (4X4) SUV 2.4L ULP 4 SP AUTO $6,270 $8,800
CV (4X4) SUV 2.4L ULP 5 SP MAN $4,950 $7,260
See All Toyota RAV4 2005 Pricing and Specs

Toyota RAV4 2005 Q&As

Check out real-world situations relating to the Toyota RAV4 2005 here, particularly what our experts have to say about them.

  • My 2005 Toyota RAV4 won't stay in gear

    Flushing a transmission is a practice that mechanics around the world just can't agree on in terms of its benefits. Either way, it would be pretty dangerous to do it with something as flammable as petrol. Also, unlike transmission fluid, petrol is not a lubricant so internal damage would possibly occur if you ran the car with only petrol in the transmission.

    Most transmission flushing is done by using fresh automatic transmission fluid (ATF) which displaces most of the old ATF. A fluid change is the other service option, but this will usually only replace the ATF in the transmission's pan. A flush, meanwhile, will replace the stuff in the pan as well as in the torque converter and the transmission lines.

    Your problem, however, sounds more like a lack of fluid in the first place. The inability of an automatic transmission to select gears and/or produce any forward movement is often down to depleted ATF rather than dirty or old fluid. Check the fluid level on the transmission's dipstick and, if it's low, add some more. The job then is to work out where the ATF is going missing, because the transmission is a sealed system that shouldn't need topping up. You may have a leak somewhere. And definitely check this first before spending lots of money on repairs when a quick ATF top-up will bring the car back to full health.

    Show more
  • Toyota RAV4: Which years have ECU issues?

    The ECU problem affected 2001, 2002 and 2003 models.

    Show more
  • Toyota RAV4 2005: What are signs of the ECM problem?

    There is a problem with the ECM controlling the automatic transmission that car result in the clutches in the transmission burning out. It was so common that Toyota recalled RAV4s in America to fix them, but Toyota chose not to recall the cars in Australia. Seems we're second-class citizens. Watch for rough shifting, reluctance to shift, jerking and generally rough running.

    Show more
  • Toyota RAV4 2006: Symptoms of a transmission problem?

    It certainly sounds like the same problem. Consult your dealer about it and ask what Toyota is prepared to do for you. We understand that Toyota was replacing the transmission ECM for owners with problem cars in the USA, but they have not been as forthcoming here. It would also be worth having it assessed by an independent auto transmission specialist so you know exactly what you're dealing with.

    Show more
See All Toyota RAV4 2005 Q&As
Disclaimer: You acknowledge and agree that all answers are provided as a general guide only and should not be relied upon as bespoke advice. Carsguide is not liable for the accuracy of any information provided in the answers.

Toyota RAV4 2005 Dimensions

Dimensions for the 2005 Toyota RAV4 are dependent on which body type is chosen. The maximum width and height is 1785mm x 1715mm and can vary on the basis of model.

Dimensions for the Toyota RAV4 2005 Dimensions  include 1695mm height, 1785mm width, 3860mm length.
Toyota RAV4 Model Body Type Height x Width x Length Ground Clearance
CV (4X4) SUV 1695x1785x3860 mm 150 mm
CV Sport SUV 1695x1785x3860 mm 150 mm
CV (4X4) SUV 1715x1785x4225 mm 145 mm
CV Sport SUV 1715x1785x4225 mm 145 mm
See All Toyota RAV4 2005 Dimensions

Toyota RAV4 2005 Towing capacity

The Toyota RAV4 has maximum towing capacity of 1500kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.

Toyota RAV4 Model Body Type Specs Braked Capacity
CV (4X4) SUV 2.4L,ULP,5 SP MAN 1500kg
CV Sport SUV 2.4L,ULP,5 SP MAN 1500kg
CV (4X4) SUV 2.4L,ULP,4 SP AUTO 1500kg
CV Sport SUV 2.4L,ULP,4 SP AUTO 1500kg
See All Toyota RAV4 2005 Towing Capacity

Toyota RAV4 2005 Fuel consumption

Fuel consumption for the 2005 Toyota RAV4 is dependent on the type of engine, transmission, or model chosen. The Toyota RAV4 currently offers fuel consumption from 9.3 to 9.7L/100km. The Toyota RAV4 is available with the following fuel type: ULP.

Toyota RAV4 Model Body Type Specs Fuel Consumption
CV (4X4) SUV 2.4L,ULP,5 SP MAN 9.3L/100km
Cruiser (4X4) SUV 2.4L,ULP,5 SP MAN 9.3L/100km
Cruiser (4X4) SUV 2.4L,ULP,5 SP MAN 9.4L/100km
Cruiser (4X4) SUV 2.4L,ULP,4 SP AUTO 9.7L/100km
* Combined fuel consumption See All Toyota RAV4 2005 Pricing and Specs

Toyota RAV4 2005 Wheel size

Wheel size for the 2005 Toyota RAV4 will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Toyota RAV4 spans from 16x6.5 inches.

Toyota RAV4 Model Body Type Front Tyre Size Front Rim Rear Tyre Size Rear Rim
CV (4X4) SUV 215x70 R16 16x6.5 inches 215x70 R16 16x6.5 inches
CV Sport SUV 215x70 R16 16x6.5 inches 215x70 R16 16x6.5 inches
Cruiser (4X4) SUV 215x70 R16 16x6.5 inches 215x70 R16 16x6.5 inches
See All Toyota RAV4 2005 Wheel Sizes
