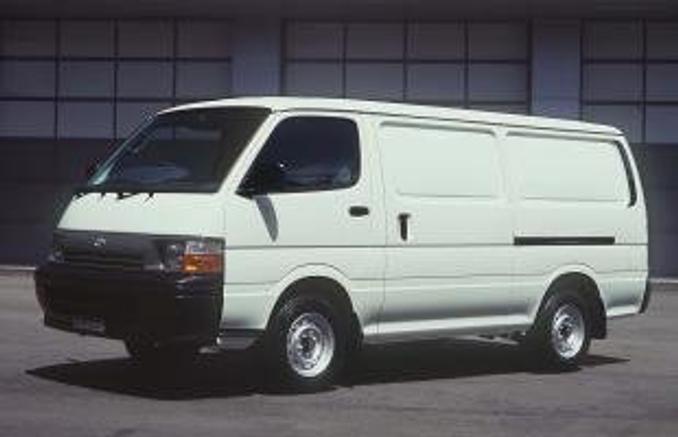

Toyota HiAce 2005

FROM $4,180

The 2005 Toyota HiAce range of configurations is currently priced from $8,990.

The 2005 Toyota HiAce carries a braked towing capacity of up to 1400 Kg, but check to ensure this applies to the configuration you're considering.

Van

5 Speed Manual

Unleaded Petrol

Toyota HiAce Model	Body Type	Height x Width x Length	Ground Clearance
Base	Body Type: Van	Height x Width x Length: 1930x1690x4830 mm	Ground Clearance: 190 mm
SBV	Body Type: Van	Height x Width x Length: 1995x1800x5160 mm	Ground Clearance: 141 mm
Lwb	Body Type: Van	Height x Width x Length: 1980x1695x4695 mm	Ground Clearance: 160 mm
Slwb	Body Type: Van	Height x Width x Length: 2285x1880x5380 mm	Ground Clearance: 155 mm
Commuter	Body Type: People Mover	Height x Width x Length: 2285x1880x5380 mm	Ground Clearance: 155 mm

Toyota HiAce Model

Body Type

Height x Width x Length

Ground Clearance

Base

Body Type: Van

Height x Width x Length: 1930x1690x4830 mm

Ground Clearance: 190 mm

SBV

Body Type: Van

Height x Width x Length: 1995x1800x5160 mm

Ground Clearance: 141 mm

Lwb

Body Type: Van

Height x Width x Length: 1980x1695x4695 mm

Ground Clearance: 160 mm

Slwb

Body Type: Van

Height x Width x Length: 2285x1880x5380 mm

Ground Clearance: 155 mm

Commuter

Body Type: People Mover

Height x Width x Length: 2285x1880x5380 mm

Ground Clearance: 155 mm

Toyota HiAce 2005 Pricing & Specs

The Toyota HiAce 2005 prices range from $4,180 for the basic trim level Van Sbv to $13,750 for the top of the range Van Lwb.

$14,555

Based on 19 cars listed for sale in the last 6 months.

LOWEST PRICE

$8,990

HIGHEST PRICE

$26,990

Toyota HiAce Model	Body Type	Specs	Price from	Price to
Base	Body Type: Van	Specs: 3.0L Diesel 5 SP MAN	Price From: $4,840	Price To: $8,140
Lwb	Body Type: Van	Specs: 2.7L ULP 5 SP MAN	Price From: $6,710	Price To: $13,750
SBV	Body Type: Van	Specs: 2.4L ULP 5 SP MAN	Price From: $4,180	Price To: $6,600
Slwb	Body Type: Van	Specs: 2.7L ULP 5 SP MAN	Price From: $8,250	Price To: $13,640
Commuter	Body Type: People Mover	Specs: 2.5L Diesel 4 SP AUTO	Price From: $6,600	Price To: $14,190

See all Toyota HiAce 2005 Pricing & Specs

Toyota HiAce 2005 Towing Capacity

The 2005 Toyota HiAce has maximum towing capacity of 1400kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.

Toyota HiAce Model	Body Type	Specs	Braked Capacity
Base	Body Type: Van	Specs: 2.4L ULP 5 SP MAN	Braked Capacity: 1400kg
Lwb	Body Type: Van	Specs: 2.5L Diesel 5 SP MAN	Braked Capacity: 1000kg
Slwb	Body Type: Van	Specs: 2.5L Diesel 5 SP MAN	Braked Capacity: 1000kg
SBV	Body Type: Van	Specs: 2.4L ULP 5 SP MAN	Braked Capacity: 1400kg
Commuter	Body Type: People Mover	Specs: 2.4L ULP 4 SP AUTO	Braked Capacity: 1400kg

See all Toyota HiAce 2005 Towing Capacity

Toyota HiAce 2005 FAQs

My 2005 Toyota HiAce diesel’s central locking has stopped working

If the central locking is working via the interior switch, then it’s fair to assume that the problem is only with the exterior lock mechanism. About then, a locksmith will go looking for a faulty or deceased door actuator switch or mechanism, as this is often the cause of this condition.

But it could be a case of dirty or dry electrical contacts on the mechanism in question, too, so don’t rule that out as a first (and cheapest) possibility.

HiAce blowing smoke

Normally, I would be thinking it’s the turbo, but the fact the performance hasn’t been affected would suggest it’s not. Check the injectors, it could be that they’re worn and in need of replacement.

Hiace intermittent problems

It's most likely to be an engine sensor, or a wiring connection associated with one, that's the problem. Unfortunately, intermittent problems are hard to detect, because they rarely occur when the mechanic is there to witness it.

See all Toyota HiAce 2005 FAQs

Disclaimer: You acknowledge and agree that all answers are provided as a general guide only and should not be relied upon as bespoke advice. CarsGuide is not liable for the accuracy of any information provided in the answers.

Toyota HiAce 2005 Wheel Size

Wheel size for the 2005 Toyota HiAce will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models. The wheel size available will alter the range of tyres available to be fitted.

Toyota HiAce Model	Body Type	Front Tyre Size	Front Rim	Rear Rim
Base	Body Type: Van	Front Tyre Size: 185R14C-8PR	Front Rim: 5.5x14 in	Rear Rim: 5.5x14 in
Lwb	Body Type: Van	Front Tyre Size: 195R15	Front Rim: 6.5x15 in	Rear Rim: 6.5x15 in
Slwb	Body Type: Van	Front Tyre Size: 195R15	Front Rim: 6.5x15 in	Rear Rim: 6.5x15 in
SBV	Body Type: Van	Front Tyre Size: 195x70 R15	Front Rim: 5.5x15 in	Rear Rim: 5.5x15 in
Commuter	Body Type: People Mover	Front Tyre Size: 185R14C-8PR	Front Rim: 5.5x14 in	Rear Rim: 5.5x14 in

See all Toyota HiAce 2005 Wheel Sizes

Toyota HiAce 2005 Fuel consumption

Fuel consumption for the 2005 Toyota HiAce is dependent on the type of engine, transmission, or model chosen.

Toyota HiAce Model	Body Type	Specs	Fuel Consumption
Base	Body Type: Van	Specs: 2.4L ULP 5 SP MAN	Fuel Consumption: —
Lwb	Body Type: Van	Specs: 2.5L Diesel 4 SP AUTO	Fuel Consumption: 8.4L/100km
Lwb	Body Type: Van	Specs: 2.7L ULP 4 SP AUTO	Fuel Consumption: 11.6L/100km
Lwb	Body Type: Van	Specs: 2.5L Diesel 5 SP MAN	Fuel Consumption: 8.1L/100km
Slwb	Body Type: Van	Specs: 2.5L Diesel 5 SP MAN	Fuel Consumption: 8.8L/100km
Slwb	Body Type: Van	Specs: 2.7L ULP 4 SP AUTO	Fuel Consumption: 12.4L/100km
Commuter	Body Type: People Mover	Specs: 2.5L Diesel 5 SP MAN	Fuel Consumption: 8.8L/100km
Commuter	Body Type: People Mover	Specs: 2.4L ULP 5 SP MAN	Fuel Consumption: —
Commuter	Body Type: People Mover	Specs: 2.7L ULP 5 SP MAN	Fuel Consumption: 12.4L/100km
