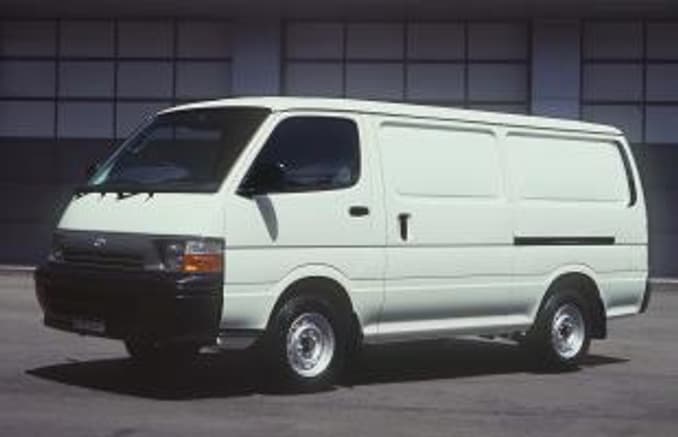

Toyota HiAce 2003
The 2003 Toyota HiAce carries a braked towing capacity of up to 1400 Kg, but check to ensure this applies to the configuration you're considering.
Toyota HiAce Reviews
Toyota HiAce 2023 review: LWB turbo-diesel
Toyota HiAce 2022 review: LWB diesel auto GL Package - GVM test
Toyota HiAce 2021 review: LWB diesel GVM test
Ford Transit Custom 340L DCiV vs Renault Trafic Crew Lifestyle vs Toyota HiAce Crew Van 2021 comparison review
Ford Transit Custom vs Hyundai iLoad vs Toyota HiAce LWB comparison review
Toyota HiAce 2020 review: Commuter
Toyota HiAce 2020 review: Crew Van GVM test
Toyota HiAce 2020 review: V6 petrol GVM test
Toyota HiAce 2020 review: LWB 2.8 Auto
Toyota HiAce 2019 review
Toyota HiAce LWB Crew Van 2017 review
Large Commercial Van 2012 Review
Toyota HiAce 2003 Dimensions
Dimensions for the 2003 Toyota HiAce are dependent on which body type is chosen. The maximum width and height is 1800mm x 2215mm and can vary on the basis of model.
| Toyota HiAce Model | Body Type | Height x Width x Length | Ground Clearance | |
|---|---|---|---|---|
| (LPG) | Commercial | 1940x1690x4570 mm | 190 mm | |
| base | Commercial | 1940x1690x4570 mm | 190 mm | |
| (LPG) | Commercial | 1930x1690x4830 mm | 190 mm | |
| base | Commercial | 1930x1690x4830 mm | 190 mm | |
| Commuter | People mover | 2215x1690x5130 mm | 190 mm | |
Toyota HiAce 2003 Price and Specs
Pricing guides
| Toyota HiAce Model | Body Type | Specs | Price from | Price to | |
|---|---|---|---|---|---|
| (LPG) | Commercial | 2.4L ULP 4 SP AUTO | $4,950 | $7,260 | |
| (LPG) | Commercial | 2.4L ULP 5 SP MAN | $4,620 | $6,820 | |
| (base) | Commercial | 3.0L Diesel 5 SP MAN | $5,060 | $7,480 | |
| (base) | Commercial | 2.4L ULP 4 SP AUTO | $4,950 | $7,260 | |
| Commuter | People mover | 3.0L Diesel 5 SP MAN | $8,030 | $11,330 | |
| Commuter | People mover | 2.4L ULP 4 SP AUTO | $6,930 | $9,790 | |
| Commuter | People mover | 2.4L ULP 5 SP MAN | $6,600 | $9,240 | |
Toyota HiAce 2003 Q&As
Check out real-world situations relating to the Toyota HiAce 2003 here, particularly what our experts have to say about them.
-
Toyota HiAce 2003: Which variant is the best?
There’s no real difference in reliability or maintenance, but the SBV is more comfortable and feels a little safer with a little more sheetmetal ahead of you. I would prefer to be driving the SBV. It’s value would be $6000-$8000.
Show more
Toyota HiAce 2003 Towing capacity
The Toyota HiAce has maximum towing capacity of 1400kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
| Toyota HiAce Model | Body Type | Specs | Braked Capacity | |
|---|---|---|---|---|
| (LPG) | Commercial | 2.4L,ULP,5 SP MAN | 1400kg | |
| base | Commercial | 2.4L,ULP,5 SP MAN | 1400kg | |
| (LPG) | Commercial | 2.4L,ULP,4 SP AUTO | 1400kg | |
| base | Commercial | 2.4L,ULP,4 SP AUTO | 1400kg | |
| Commuter | People mover | 2.4L,ULP,5 SP MAN | 1400kg | |
| Commuter | People mover | 2.4L,ULP,4 SP AUTO | 1400kg | |
| Commuter | People mover | 3.0L,Diesel,5 SP MAN | 1400kg | |
Toyota HiAce 2003 Fuel consumption
Fuel consumption for the 2003 Toyota HiAce is dependent on the type of engine, transmission, or model chosen. The Toyota HiAce is available with the following fuel types: Diesel and ULP.
| Toyota HiAce Model | Body Type | Specs | Fuel Consumption | |
|---|---|---|---|---|
| base | Commercial | 3.0L,Diesel,5 SP MAN | — | |
| (LPG) | Commercial | 2.4L,ULP,4 SP AUTO | — | |
| Commuter | People mover | 3.0L,Diesel,5 SP MAN | — | |
| Commuter | People mover | 2.4L,ULP,5 SP MAN | — | |
Toyota HiAce 2003 Wheel size
Wheel size for the 2003 Toyota HiAce will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Toyota HiAce vary from 14x5.5 inches to 15x5.5 inches.
| Toyota HiAce Model | Body Type | Front Tyre Size | Front Rim | Rear Tyre Size | Rear Rim | |
|---|---|---|---|---|---|---|
| (LPG) | Commercial | 185R14C-8PR | 14x5.5 inches | 185R14C-8PR | 14x5.5 inches | |
| base | Commercial | 185R14C-8PR | 14x5.5 inches | 185R14C-8PR | 14x5.5 inches | |
| SBV | Commercial | 195x70R15 | 15x5.5 inches | 195x70R15 | 15x5.5 inches | |
| SBV LWB | Commercial | 195x70 R15 | 15x5.5 inches | 195x70 R15 | 15x5.5 inches | |
| Commuter | People mover | 185R14C-8PR | 14x5.5 inches | 185R14C-8PR | 14x5.5 inches | |
