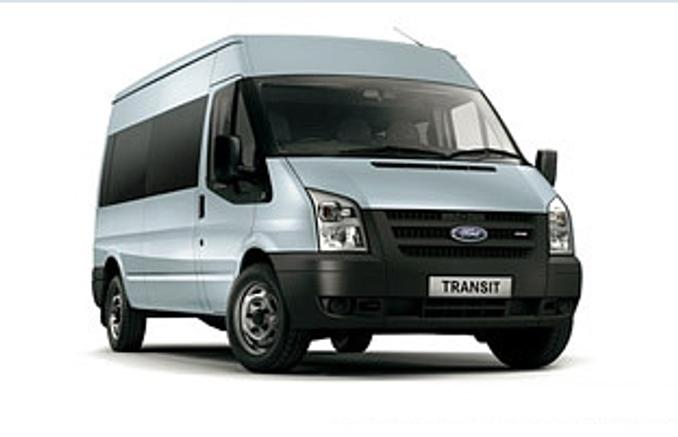

Ford Transit 2016

What's on this page

Ford Transit 2016

The 2016 Ford Transit carries a braked towing capacity of up to 3500 Kg, but check to ensure this applies to the configuration you're considering.

Ford Transit 2016 Q&As

Check out real-world situations relating to the Ford Transit here, particularly what our experts have to say about them.

  • Why isn't the turbo in my 2018 Ford Transit working?

    You’re on the right track, Don, with your guess that the whistling noise has something to do with the turbocharger’s bearing. But unfortunately, if you’re right and it’s the turbo bearing that’s making the whistling noise (and I agree with your theory) then a new or rebuilt turbocharger is the only real fix. Turbos have a hard life, dealing with extremes of temperature as well as the requirement to accelerate from almost nothing to anything up to 250,000rpm. The bearings that allow for this are sealed units and – generally – are not serviceable.

    But you might be lucky: A lack of turbo boost can be caused by many things, so check the basics like a loose boost pipe before you start tearing the engine apart.

    Show more
  • Why will my 1999 Ford Transit only start when the accelerator is all the way down?

    The problem could be caused by a whole lot of things, Bill. Have the vehicle scanned to see if any error codes crop up which could then lead you to something like a dodgy fuel pump, worn injectors, a leak in the fuel system somewhere or even a crook sensor that is feeding incorrect information to the computer. To be honest, I’m suspecting a broken throttle-position sensor (TPS), especially as you need to floor the throttle to get the engine to start. Without the TPS working properly, the computer has no way of knowing how much fuel to inject into the engine.

    Show more
  • Ford Transit Custom Sport: Is it available in Australia?
    Show more
  • Is the Ford Transit Connect front wheel drive?

    Ford's Transit Connect compact panel van range powers the front wheels, rather than being rear wheel drive as per larger more robust vans designed to haul very heavy weights.

    Show more
See All Ford Transit Q&As
Disclaimer: You acknowledge and agree that all answers are provided as a general guide only and should not be relied upon as bespoke advice. Carsguide is not liable for the accuracy of any information provided in the answers.

Ford Transit 2016 Dimensions

Dimensions for the 2016 Ford Transit are dependent on which body type is chosen. The maximum width and height is 2224mm x 2785mm and can vary on the basis of model.

Dimensions for the Ford Transit 2016 Dimensions  include 2765mm height, 1987mm width, 5975mm length.
Ford Transit Model Body Type Height x Width x Length Ground Clearance
350L (LWB) RWD Mid Roof Commercial 2547x2112x5981 mm 118 mm
350L LWB MID Roof Commercial 2546x1987x5771 mm 118 mm
350L LWB High Roof Commercial 2785x1987x5771 mm 118 mm
350E LWB Jumbo (srw) Commercial 2765x1987x5975 mm 118 mm
12 Seat People mover 2369x1974x5680 mm 100 mm
410L 12 Seat People mover 2547x2094x5981 mm 154 mm
410L LWB 12 Seat People mover 2547x2094x5981 mm 154 mm
See All Ford Transit 2016 Dimensions

Ford Transit 2016 Price and Specs

Pricing guides

$32,415
Based on third party pricing data
Lowest Price
$21,600
Highest Price
$43,230
Ford Transit Model Body Type Specs Price from Price to
350E LWB Jumbo (SRW) Commercial 2.2L Diesel 6 SP MAN $32,900 $43,120
350L (LWB) FWD Mid Roof Commercial 2.0L Diesel 6 SP AUTO
350L (LWB) RWD Mid Roof Commercial 2.2L Diesel 6 SP MAN
350L LWB High Roof Commercial 2.2L Diesel 6 SP MAN $30,000 $39,270
12 Seat People mover 2.2L Diesel 6 SP MAN $21,600 $29,370
410L 12 Seat People mover 2.2L Diesel 6 SP MAN $29,900 $39,160
410L LWB 12 Seat People mover 2.2L Diesel 6 SP MAN $29,900 $39,160
See All Ford Transit 2016 Pricing and Specs

Ford Transit 2016 Towing capacity

The Ford Transit’s towing capacity ranges from 1500kg to 3500kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.

Ford Transit Model Body Type Specs Braked Capacity
350L (LWB) RWD Mid Roof Commercial 2.2L,Diesel,6 SP MAN 2750kg
350L LWB MID Roof Commercial 2.2L,Diesel,6 SP MAN 2750kg
350L LWB High Roof Commercial 2.2L,Diesel,6 SP MAN 2750kg
350E LWB Jumbo (srw) Commercial 2.2L,Diesel,6 SP MAN 2750kg
12 Seat People mover 2.2L,Diesel,6 SP MAN 1500kg
410L 12 Seat People mover 2.2L,Diesel,6 SP MAN 2500kg
410L LWB 12 Seat People mover 2.2L,Diesel,6 SP MAN 2500kg
See All Ford Transit 2016 Towing Capacity

Ford Transit 2016 Wheel size

Wheel size for the 2016 Ford Transit will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Ford Transit vary from 16x5.5 inches to 16x6 inches.

Ford Transit Model Body Type Front Tyre Size Front Rim Rear Tyre Size Rear Rim
350L (LWB) RWD Mid Roof Commercial 215x65 R16 16x6.5 inches 215x65 R16 16x6.5 inches
350L LWB MID Roof Commercial 235x65 R16 16x6.5 inches 235x65 R16 16x6.5 inches
350L LWB High Roof Commercial 235x65 R16 16x6.5 inches 235x65 R16 16x6.5 inches
350E LWB Jumbo (srw) Commercial 235x65 R16 16x6.5 inches 235x65 R16 16x6.5 inches
12 Seat People mover 215x75 R16 16x5.5 inches 215x75 R16 16x5.5 inches
410L LWB 12 Seat People mover 235x65 R16 16x6.5 inches 235x65 R16 16x6.5 inches
410L 12 Seat People mover 235x65 R16 16x6.5 inches 235x65 R16 16x6.5 inches
See All Ford Transit 2016 Wheel Sizes

Ford Transit 2016 Fuel consumption

Fuel consumption for the 2016 Ford Transit is dependent on the type of engine, transmission, or model chosen. The Ford Transit is available with the following fuel type: Diesel.

Ford Transit Model Body Type Specs Fuel Consumption
350E LWB Jumbo (srw) Commercial 2.2L,Diesel,6 SP MAN 9.5L/100km
350L (LWB) FWD Mid Roof Commercial 2.0L,Diesel,6 SP AUTO
12 Seat People mover 2.2L,Diesel,6 SP MAN 7.9L/100km
410L 12 Seat People mover 2.2L,Diesel,6 SP MAN
* Combined fuel consumption See All Ford Transit 2016 Pricing and Specs
