Ford Transit 2003

What's on this page

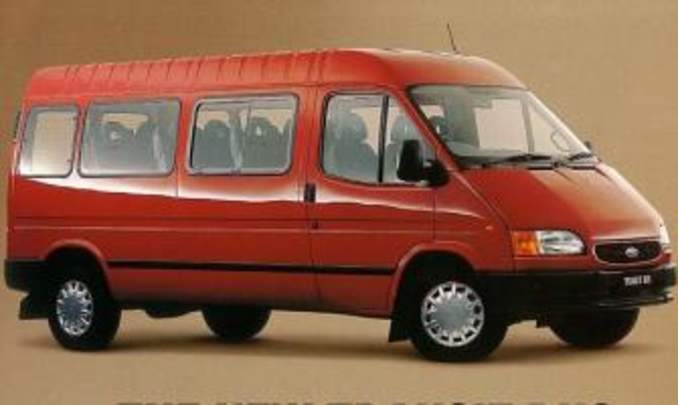

Ford Transit 2003

The 2003 Ford Transit range of configurations is currently priced from $2,900.

The 2003 Ford Transit carries a braked towing capacity of up to 2500 Kg, but check to ensure this applies to the configuration you're considering.

Ford Transit 2003 Q&As

Check out real-world situations relating to the Ford Transit here, particularly what our experts have to say about them.

  • Why isn't the turbo in my 2018 Ford Transit working?

    You’re on the right track, Don, with your guess that the whistling noise has something to do with the turbocharger’s bearing. But unfortunately, if you’re right and it’s the turbo bearing that’s making the whistling noise (and I agree with your theory) then a new or rebuilt turbocharger is the only real fix. Turbos have a hard life, dealing with extremes of temperature as well as the requirement to accelerate from almost nothing to anything up to 250,000rpm. The bearings that allow for this are sealed units and – generally – are not serviceable.

    But you might be lucky: A lack of turbo boost can be caused by many things, so check the basics like a loose boost pipe before you start tearing the engine apart.

    Show more
  • Why will my 1999 Ford Transit only start when the accelerator is all the way down?

    The problem could be caused by a whole lot of things, Bill. Have the vehicle scanned to see if any error codes crop up which could then lead you to something like a dodgy fuel pump, worn injectors, a leak in the fuel system somewhere or even a crook sensor that is feeding incorrect information to the computer. To be honest, I’m suspecting a broken throttle-position sensor (TPS), especially as you need to floor the throttle to get the engine to start. Without the TPS working properly, the computer has no way of knowing how much fuel to inject into the engine.

    Show more
  • Ford Transit Custom Sport: Is it available in Australia?
    Show more
  • Is the Ford Transit Connect front wheel drive?

    Ford's Transit Connect compact panel van range powers the front wheels, rather than being rear wheel drive as per larger more robust vans designed to haul very heavy weights.

    Show more
See All Ford Transit Q&As
Disclaimer: You acknowledge and agree that all answers are provided as a general guide only and should not be relied upon as bespoke advice. Carsguide is not liable for the accuracy of any information provided in the answers.

Ford Transit 2003 Dimensions

Dimensions for the 2003 Ford Transit are dependent on which body type is chosen. The maximum width and height is 1974mm x 2363mm and can vary on the basis of model.

Dimensions for the Ford Transit 2003 Dimensions  include 2037mm height, 1974mm width, 5902mm length.
Ford Transit Model Body Type Height x Width x Length Ground Clearance
LOW (swb) Commercial 2055x1974x4884 mm 161 mm
base Commercial 2037x1974x5902 mm 161 mm
MID (mwb) Commercial 2353x1974x5201 mm 161 mm
MID (lwb) Commercial 2363x1974x5651 mm 161 mm
12 Seat People mover 2351x1974x5651 mm 201 mm
See All Ford Transit 2003 Dimensions

Ford Transit 2003 Price and Specs

The Ford Transit 2003 is currently available from $2,900 for the Transit Low (SWB) up to $13,750 for the Transit (base).

Pricing guides

$8,325
Based on third party pricing data
Lowest Price
$2,900
Highest Price
$13,750
Ford Transit Model Body Type Specs Price from Price to
(base) Commercial 2.4L Diesel 5 SP MAN $10,010 $13,750
(base) Commercial 2.3L ULP 5 SP MAN $8,030 $11,330
Low (SWB) Commercial 2.4L Diesel 5 SP MAN $5,400 $8,360
Low (SWB) Commercial 2.4L Diesel 5 SP $2,900 $5,060
12 Seat People mover 2.4L Diesel 5 SP MAN $8,300 $12,870
12 Seat People mover 2.4L Diesel 5 SP $8,900 $13,420
12 Seat People mover 2.3L ULP 5 SP MAN $7,800 $12,100
See All Ford Transit 2003 Pricing and Specs

Ford Transit 2003 Towing capacity

The Ford Transit’s towing capacity ranges from 2000kg to 2500kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.

Ford Transit Model Body Type Specs Braked Capacity
LOW (swb) Commercial 2.3L,ULP,5 SP MAN 2250kg
base Commercial 2.3L,ULP,5 SP MAN 2500kg
LOW (swb) Commercial 2.3L,ULP,5 SP MAN 2000kg
MID (mwb) Commercial 2.3L,ULP,5 SP MAN 2250kg
12 Seat People mover 2.3L,ULP,5 SP MAN 2250kg
12 Seat People mover 2.4L,Diesel,5 SP MAN 2500kg
12 Seat People mover 2.4L,Diesel,5 SP 2500kg
See All Ford Transit 2003 Towing Capacity

Ford Transit 2003 Wheel size

Wheel size for the 2003 Ford Transit will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Ford Transit vary from 16x6.5 inches to 16x5 inches.

Ford Transit Model Body Type Front Tyre Size Front Rim Rear Tyre Size Rear Rim
LOW (swb) Commercial 205x75 R16 16x6.5 inches 205x75 R16 16x6.5 inches
base Commercial 185x75 R16 16x5 inches 185x75 R16 16x5 inches
MID (mwb) Commercial 215x75 R16 16x6.5 inches 215x75 R16 16x6.5 inches
MID (lwb) Commercial 205x75 R16 16x6.5 inches 205x75 R16 16x6.5 inches
12 Seat People mover 215x75 R16 16x6.5 inches 215x75 R16 16x6.5 inches
See All Ford Transit 2003 Wheel Sizes

Ford Transit 2003 Fuel consumption

Fuel consumption for the 2003 Ford Transit is dependent on the type of engine, transmission, or model chosen. The Ford Transit is available with the following fuel types: Diesel and ULP.

Ford Transit Model Body Type Specs Fuel Consumption
base Commercial 2.4L,Diesel,5 SP MAN
base Commercial 2.3L,ULP,5 SP MAN
12 Seat People mover 2.4L,Diesel,5 SP
12 Seat People mover 2.3L,ULP,5 SP MAN
* Combined fuel consumption See All Ford Transit 2003 Pricing and Specs
