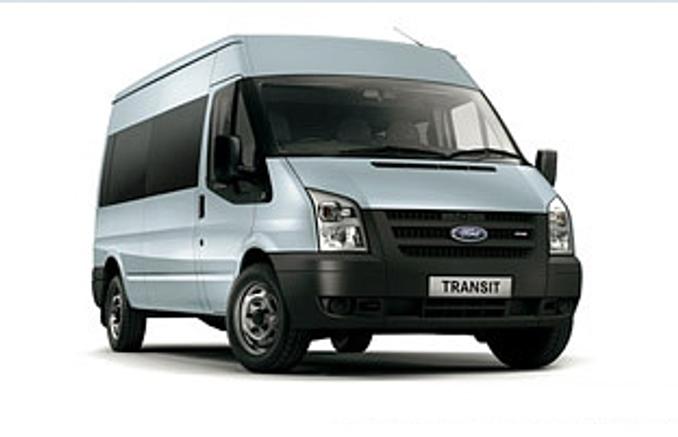

Ford Transit 2010

What's on this page

Ford Transit 2010

The 2010 Ford Transit range of configurations is currently priced from $11,990.

The 2010 Ford Transit carries a braked towing capacity of up to 3000 Kg, but check to ensure this applies to the configuration you're considering.

Ford Transit 2010 Q&As

Check out real-world situations relating to the Ford Transit 2010 here, particularly what our experts have to say about them.

  • V6 Engines in transit

    THANKS Sam, and for anyone thinking of doing the conversion the information about the need to change the diff ratio is important to note. For readers in Victoria, we have been told the Castlemaine Rod Shop is able to do the conversion too.

    Show more
See All Ford Transit 2010 Q&As
Disclaimer: You acknowledge and agree that all answers are provided as a general guide only and should not be relied upon as bespoke advice. Carsguide is not liable for the accuracy of any information provided in the answers.

Ford Transit 2010 Dimensions

Dimensions for the 2010 Ford Transit are dependent on which body type is chosen. The maximum width and height is 1974mm x 2622mm and can vary on the basis of model.

Dimensions for the Ford Transit 2010 Dimensions  include 2031mm height, 1974mm width, 5931mm length.
Ford Transit Model Body Type Height x Width x Length Ground Clearance
LOW (swb) Commercial 2067x1974x4863 mm 100 mm
Econetic LOW (swb) Commercial 2067x1974x4863 mm 100 mm
LOW (mwb) Commercial 2056x1974x5230 mm 100 mm
base Commercial 2031x1974x5931 mm 100 mm
12 Seat People mover 2369x1974x5680 mm 100 mm
See All Ford Transit 2010 Dimensions

Ford Transit 2010 Price and Specs

The Ford Transit 2010 is currently available from $11,990 for the Transit Low (SWB) up to $34,999 for the Transit High (LWB).

Pricing guides

$19,990
Based on 23 cars listed for sale in the last 6 months
Lowest Price
$11,990
Highest Price
$34,999
Ford Transit Model Body Type Specs Price from Price to
(base) Commercial 2.4L Diesel 6 SP MAN $17,600 $22,330
Econetic Low (SWB) Commercial 2.2L Diesel 6 SP MAN $8,000 $12,430
Extended Frame Commercial 2.4L Diesel 6 SP MAN $19,140 $24,200
High (LWB) Commercial 2.4L Diesel 6 SP MAN $11,200 $16,500
12 Seat People mover 2.4L Diesel 6 SP MAN $10,000 $15,070
See All Ford Transit 2010 Pricing and Specs

Ford Transit 2010 Towing capacity

The Ford Transit’s towing capacity ranges from 1500kg to 3000kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.

Ford Transit Model Body Type Specs Braked Capacity
LOW (swb) Commercial 2.2L,Diesel,6 SP MAN 2000kg
LOW (swb) Commercial 2.2L,Diesel,5 SP MAN 2000kg
Econetic LOW (swb) Commercial 2.2L,Diesel,6 SP MAN 2000kg
LOW (mwb) Commercial 2.2L,Diesel,6 SP MAN 2000kg
12 Seat People mover 2.4L,Diesel,6 SP MAN 1500kg
See All Ford Transit 2010 Towing Capacity

Ford Transit 2010 Wheel size

Wheel size for the 2010 Ford Transit will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Ford Transit vary from 15x5.5 inches to 16x5 inches.

Ford Transit Model Body Type Front Tyre Size Front Rim Rear Tyre Size Rear Rim
LOW (swb) Commercial 195x70 R15 15x5.5 inches 195x70 R15 15x5.5 inches
Econetic LOW (swb) Commercial 195x70 R15 15x5.5 inches 195x70 R15 15x5.5 inches
LOW (mwb) Commercial 195x70 R15 15x5.5 inches 195x70 R15 15x5.5 inches
base Commercial 195x75 R16 16x5 inches 195x75 R16 16x5 inches
12 Seat People mover 215x75 R16 16x5.5 inches 215x75 R16 16x5.5 inches
See All Ford Transit 2010 Wheel Sizes

Ford Transit 2010 Fuel consumption

Fuel consumption for the 2010 Ford Transit is dependent on the type of engine, transmission, or model chosen. The Ford Transit currently offers fuel consumption from 7.2 to 10.5L/100km. The Ford Transit is available with the following fuel type: Diesel.

Ford Transit Model Body Type Specs Fuel Consumption
EXTENDED FRAME Commercial 2.4L,Diesel,6 SP MAN 10.4L/100km
Econetic LOW (swb) Commercial 2.2L,Diesel,6 SP MAN 7.2L/100km
High (lwb) Commercial 2.4L,Diesel,6 SP MAN 10.2L/100km
base Commercial 2.4L,Diesel,6 SP MAN 9.5L/100km
12 Seat People mover 2.4L,Diesel,6 SP MAN 9.5L/100km
* Combined fuel consumption See All Ford Transit 2010 Pricing and Specs
