Ford Falcon 2004

What's on this page

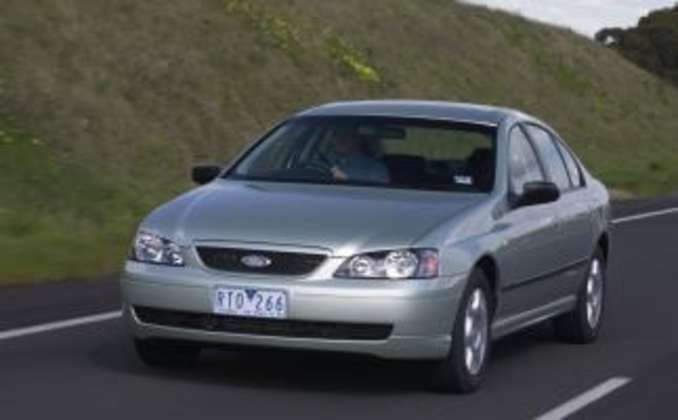

Ford Falcon 2004

The 2004 Ford Falcon range of configurations is currently priced from $2,500. Our most recent review of the 2004 Ford Falcon resulted in a score of 7 out of 10 for that particular example. You can read the full review here.

This is what Ewan Kennedy liked most about this particular version of the Ford Falcon: Roomy, Huge amount of variety, Spare parts are reasonably priced

The 2004 Ford Falcon carries a braked towing capacity of up to 2300 Kg, but check to ensure this applies to the configuration you're considering.

Ford Falcon 2004 Q&As

Check out real-world situations relating to the Ford Falcon 2004 here, particularly what our experts have to say about them.

  • How can I change driveshaft centre bearing on a 2004 BA Falcon?

    It sounds very much like a seized bush in the rubber-donut assembly that joins the tailshaft to the back of the gearbox. Inside the rubber donut (also called the flex-joint) there’s a metal inner bush and these have been known to seize. Water gets into this bush and rusts the assembly solid. If that happens, it will feel like the thing will never come apart.

    At that point, perhaps removing the slip-yoke from the back of the transmission will allow you to remove the whole assembly and get better access to it on a bench, rather than from under the car. The slip-yoke shouldn’t present any problems other than you might lose a little transmission fluid (so have some rags handy) but you do need to remember to mark the position of all the components relative to each other. That means marking where the tailshaft bolts were relative to the rear coupling, the coupling relative to the flange, the shaft relative to the yoke’s holes and so on. That’s so when the tailshaft is reassembled and refitted, it’s still in balance and won’t create any new driveline vibrations. This process even extends to marking which nuts and bolts attached to which mounting holes in the rear CV joint, as some of these bolts were individually weighted for balance.

    The other thing to check is the actual centre bearing you’re trying to replace. For some reason there were two different part numbers for this series of Ford Falcon. One has a different bearing inner diameter and a different spacing for the mounting holes compared with the other. Make sure you buy the correct one.

    Show more
  • Ford Falcon: Indicator failure

    When a globe in one of the indicators goes out the other indicator on the same side as the one that has failed will flash quickly. At the same time the indicators in the instrument cluster will flash quickly and the audible indicator will click quickly. Turn each of the indicators on and check that they are working. If they aren't it suggests a deeper problem, which could be a fault with the cluster. One thing for sure it won't fix itself. If you want to get a second opinion take it to an auto electrician.

    Show more
  • Ford Falcon 2004: Noise over small bumps

    It's not possible to say with any certainty without inspecting the car, which is what you should have done. But on what you have told us I'd be looking at the suspension bushes and shock absorbers in the front-end.

    Show more
  • Ford Falcon 2004: Shuddering

    I suspect you have a vacuum leak, probably caused by a cracked or split vacuum fitting on the brake booster.

    Show more
See All Ford Falcon 2004 Q&As
Disclaimer: You acknowledge and agree that all answers are provided as a general guide only and should not be relied upon as bespoke advice. Carsguide is not liable for the accuracy of any information provided in the answers.

Ford Falcon 2004 Wheel size

Wheel size for the 2004 Ford Falcon will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Ford Falcon vary from 16x6.5 inches to 17x8 inches.

Ford Falcon Model Body Type Front Tyre Size Front Rim Rear Tyre Size Rear Rim
XT Sedan 215x60 R16 16x6.5 inches 215x60 R16 16x6.5 inches
Classic Sedan 215x60 R16 16x6.5 inches 215x60 R16 16x6.5 inches
SR Sedan 235x45 R17 17x7.5 inches 235x45 R17 17x7.5 inches
XT (lpg) Sedan 215x60 R16 16x6.5 inches 215x60 R16 16x6.5 inches
XL Tradesman Ute 215x60 R16 16x6.5 inches 215x60 R16 16x6.5 inches
XL Ute 215x60 R16 16x6.5 inches 215x60 R16 16x6.5 inches
XL SE Ute 215x60 R16 16x6.5 inches 215x60 R16 16x6.5 inches
XL (lpg) Ute 215x60 R16 16x6.5 inches 215x60 R16 16x6.5 inches
XT Wagon 215x50 R16 16x6.5 inches 215x50 R16 16x6.5 inches
XT (lpg) Wagon 215x50 R16 16x6.5 inches 215x50 R16 16x6.5 inches
Futura Wagon 215x50 R16 16x6.5 inches 215x50 R16 16x6.5 inches
Futura (lpg) Wagon 215x50 R16 16x6.5 inches 215x50 R16 16x6.5 inches
See All Ford Falcon 2004 Wheel Sizes

Ford Falcon 2004 Price and Specs

The Ford Falcon 2004 is currently available from $2,500 for the Falcon XR8 up to $26,990 for the Falcon XR8.

Pricing guides

$6,990
Based on 163 cars listed for sale in the last 6 months
Lowest Price
$2,500
Highest Price
$26,990
Ford Falcon Model Body Type Specs Price from Price to
Classic Sedan 4.0L ULP 4 SP AUTO $3,400 $5,500
Futura Sedan 4.0L ULP 4 SP AUTO $3,000 $5,170
Futura (LPG) Sedan 4.0L LPG 4 SP AUTO $3,900 $6,270
SR Sedan 5.4L ULP 4 SP AUTO $3,900 $6,270
RTV Ute 5.4L ULP 4 SP AUTO $4,600 $7,480
RTV Ute 4.0L ULP 4 SP AUTO $3,500 $5,610
RTV Ute 4.0L ULP 5 SP MAN $3,100 $5,390
RTV Ute 5.4L ULP 5 SP MAN $4,500 $7,260
Futura Wagon 4.0L ULP 4 SP AUTO $3,900 $6,270
Futura (LPG) Wagon 4.0L LPG 4 SP AUTO $4,000 $6,490
XT Wagon 4.0L ULP 4 SP AUTO $3,500 $5,720
XT (lpg) Wagon 4.0L LPG 4 SP AUTO $3,700 $5,940
See All Ford Falcon 2004 Pricing and Specs

Ford Falcon 2004 Dimensions

Dimensions for the 2004 Ford Falcon are dependent on which body type is chosen. The maximum width and height is 1908mm x 1630mm and can vary on the basis of model.

Dimensions for the Ford Falcon 2004 Dimensions  include 1444mm height, 1864mm width, 4916mm length.
Ford Falcon Model Body Type Height x Width x Length Ground Clearance
XT Sedan 1444x1864x4916 mm 140 mm
Classic Sedan 1444x1864x4916 mm 140 mm
SR Sedan 1444x1864x4916 mm 140 mm
XT (lpg) Sedan 1444x1864x4916 mm 140 mm
XL Tradesman Ute 1515x1870x4938 mm 180 mm
XL Ute 1515x1870x4938 mm 180 mm
XL SE Ute 1515x1870x5077 mm 180 mm
XL Ute 1515x1870x5077 mm 180 mm
XT Wagon 1530x1863x5053 mm 140 mm
XT (lpg) Wagon 1530x1863x5053 mm 140 mm
Futura Wagon 1530x1863x5053 mm 140 mm
Futura (lpg) Wagon 1530x1863x5053 mm 140 mm
See All Ford Falcon 2004 Dimensions

Ford Falcon 2004 Towing capacity

The Ford Falcon’s towing capacity ranges from 1200kg to 2300kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.

Ford Falcon Model Body Type Specs Braked Capacity
XT Sedan 4.0L,ULP,5 SP MAN 1200kg
XT Sedan 4.0L,ULP,4 SP AUTO 2300kg
Classic Sedan 4.0L,ULP,4 SP AUTO 2300kg
SR Sedan 4.0L,ULP,4 SP AUTO 2300kg
XL Tradesman Ute 4.0L,ULP,5 SP MAN 1200kg
XL SE Ute 4.0L,ULP,5 SP MAN 1200kg
XL Ute 4.0L,ULP,5 SP MAN 1200kg
XL Ute 4.0L,ULP,4 SP AUTO 2300kg
XT Wagon 4.0L,ULP,4 SP AUTO 2300kg
XT (lpg) Wagon 4.0L,LPG,4 SP AUTO 2300kg
Futura Wagon 4.0L,ULP,4 SP AUTO 2300kg
Futura (lpg) Wagon 4.0L,LPG,4 SP AUTO 2300kg
See All Ford Falcon 2004 Towing Capacity

Ford Falcon 2004 Fuel consumption

Fuel consumption for the 2004 Ford Falcon is dependent on the type of engine, transmission, or model chosen. The Ford Falcon is available with the following fuel types: LPG, PULP and ULP.

Ford Falcon Model Body Type Specs Fuel Consumption
Futura (lpg) Sedan 4.0L,LPG,4 SP AUTO 12.5L/100km
XR6T Sedan 4.0L,PULP,6 SP MAN 10L/100km
Classic Sedan 4.0L,ULP,4 SP AUTO 9.5L/100km
RTV (lpg) Ute 4.0L,LPG,5 SP MAN
RTV Ute 5.4L,ULP,5 SP MAN
Futura (lpg) Wagon 4.0L,LPG,4 SP AUTO 12.5L/100km
Futura Wagon 4.0L,ULP,4 SP AUTO 9.7L/100km
* Combined fuel consumption See All Ford Falcon 2004 Pricing and Specs
