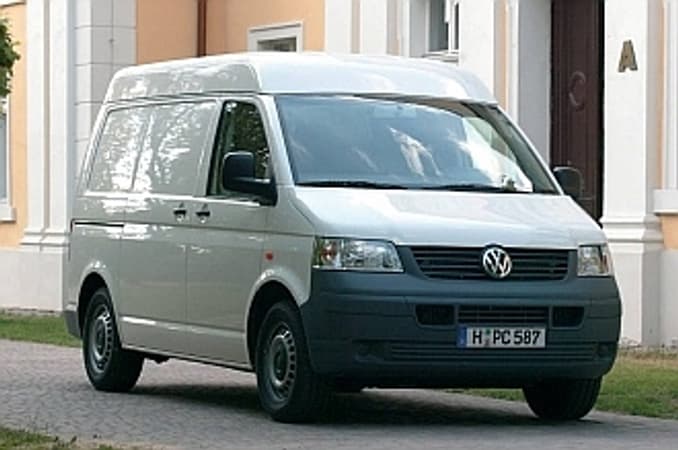

Volkswagen Transporter 2010
The 2010 Volkswagen Transporter carries a braked towing capacity of up to 2500 Kg, but check to ensure this applies to the configuration you're considering.
What's on this page
Volkswagen Transporter 2010 Q&As
Check out real-world situations relating to the Volkswagen Transporter here, particularly what our experts have to say about them.
VW Transporter can't handle weight
I would start by discussing your problem with your dealer and request the help of VW’s commercial vehicles experts to come up with a solution. But it seems as though you have bought the wrong vehicle, and maybe need to move up to a Crafter to get the load carrying capacity for the job at hand.
Ask Smithy Xtra T5 auto issues
You didn’t tell us how many kays your T5 had done prior to the rebuild, but because you used the extended warranty I can assume the factory warranty had expired. VW, like all carmakers, will refuse to cover any car that has been worked on outside the dealer network, which is understandable given they have no control over the quality of that work or the competence of the person doing it. It’s perhaps also worth considering having the auto serviced once it’s clocked up 100,000 km-plus; a change of oil can work wonders for the life of an auto trans.
Volkswagen Transporter 2010 Dimensions
Dimensions for the 2010 Volkswagen Transporter are dependent on which body type is chosen. The maximum width and height is 1904mm x 2476mm and can vary on the basis of model.
|Volkswagen Transporter Model||Body Type||Height x Width x Length||Ground Clearance|
|(SWB)||Commercial||1959x1904x4890 mm||165 mm|
|(LWB)||Commercial||1964x1904x5290 mm||155 mm|
|(SWB)||Commercial||1964x1904x4890 mm||155 mm|
|75 TDI SWB LOW||Commercial||1990x1904x4892 mm||165 mm|
|103 TDI LWB||Ute||1963x1904x5292 mm||165 mm|
|132 TDI LWB||Ute||1963x1904x5292 mm||165 mm|
|132 TDI 4 Motion LWB||Ute||1963x1904x5292 mm||165 mm|
Volkswagen Transporter 2010 Towing capacity
The Volkswagen Transporter’s towing capacity ranges from 2000kg to 2500kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
|Volkswagen Transporter Model||Body Type||Specs||Braked Capacity|
|(SWB)||Commercial||2.0L,PULP,5 SP MAN||2000kg|
|(LWB)||Commercial||2.0L,PULP,5 SP MAN||2000kg|
|(SWB)||Commercial||1.9L,Diesel,5 SP MAN||2200kg|
|75 TDI SWB LOW||Commercial||2.0L,Diesel,5 SP MAN||2000kg|
|103 TDI LWB||Ute||2.0L,Diesel,7 SP AUTO||2000kg|
|132 TDI LWB||Ute||2.0L,Diesel,6 SP MAN||2000kg|
|132 TDI LWB||Ute||2.0L,Diesel,7 SP AUTO||2000kg|
|132 TDI 4 Motion LWB||Ute||2.0L,Diesel,6 SP MAN||2000kg|
