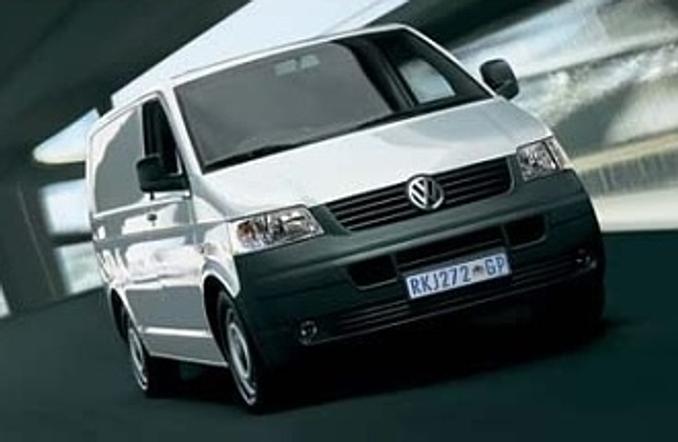

Volkswagen Transporter 2009
The 2009 Volkswagen Transporter carries a braked towing capacity of up to 2500 Kg, but check to ensure this applies to the configuration you're considering.
Volkswagen Transporter 2009 Q&As
Check out real-world situations relating to the Volkswagen Transporter here, particularly what our experts have to say about them.
-
Which big family cars do you recommend?
I don’t believe there’s an SUV that would meet your needs. The best and most sensible solution would be a peoplemover, like a Toyota Tarago, Hyundai iMax, VW Transporter.
Show more -
No help from VW
Most manufacturers have what they call "Filled for Life" transmissions, but they can still be serviced. Like you we believe VW should be more transparent when it comes to problems instead of adopting a head-in-the-sand approach, as they appear to do when confronted with a problem.
Show more -
VW Transporter stops and stalls
Check the catalytic converter to make sure it hasn’t collapsed internally and is blocking the exhaust flow.
Show more -
Ask Smithy Xtra VW Transporter to LPG
The Transporter can be converted economically and successfully with the traditional mixer technology, which is cheaper than the current injection technology and that equates to a reduced breakeven mileage. Before you convert, however, you should make sure the vehicle is in good working order and you need to understand how long you will need to own and drive the vehicle to get your money back.
Show more
Volkswagen Transporter 2009 Dimensions
Dimensions for the 2009 Volkswagen Transporter are dependent on which body type is chosen. The maximum width and height is 1904mm x 1969mm and can vary on the basis of model.


Volkswagen Transporter Model | Body Type | Height x Width x Length | Ground Clearance | |
---|---|---|---|---|
(SWB) | Commercial | 1959x1904x4890 mm | 165 mm | |
(LWB) | Commercial | 1964x1904x5290 mm | 155 mm | |
(SWB) | Commercial | 1964x1904x4890 mm | 155 mm | |
(LWB) | Commercial | 1946x1904x5290 mm | 155 mm |
Volkswagen Transporter 2009 Wheel size
Wheel size for the 2009 Volkswagen Transporter will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Volkswagen Transporter spans from 16x6.5 inches.
Volkswagen Transporter Model | Body Type | Front Tyre Size | Front Rim | Rear Tyre Size | Rear Rim | |
---|---|---|---|---|---|---|
(SWB) | Commercial | 205x65 R16 | 16x6.5 inches | 205x65 R16 | 16x6.5 inches | |
(LWB) | Commercial | 205x65 R16 | 16x6.5 inches | 205x65 R16 | 16x6.5 inches | |
Crewvan (swb) | Commercial | 205x65 R16 | 16x6.5 inches | 205x65 R16 | 16x6.5 inches | |
Crewvan (lwb) | Commercial | 205x65 R16 | 16x6.5 inches | 205x65 R16 | 16x6.5 inches |
Volkswagen Transporter 2009 Towing capacity
The Volkswagen Transporter’s towing capacity ranges from 2000kg to 2500kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
Volkswagen Transporter Model | Body Type | Specs | Braked Capacity | |
---|---|---|---|---|
(SWB) | Commercial | 2.0L,PULP,5 SP MAN | 2000kg | |
(LWB) | Commercial | 2.0L,PULP,5 SP MAN | 2000kg | |
(SWB) | Commercial | 1.9L,Diesel,5 SP MAN | 2200kg | |
(LWB) | Commercial | 1.9L,Diesel,5 SP MAN | 2200kg |
Volkswagen Transporter 2009 Price and Specs
Pricing guides

Volkswagen Transporter Model | Body Type | Specs | Price from | Price to | |
---|---|---|---|---|---|
(LWB) | Commercial | 2.5L Diesel 6 SP | $10,600 | $15,510 | |
(LWB) | Commercial | 2.5L Diesel 6 SP AUTO | $16,280 | $20,900 | |
(LWB) | Commercial | 1.9L Diesel 5 SP MAN | $14,080 | $18,480 | |
(LWB) | Commercial | 2.5L Diesel 6 SP MAN | $14,960 | $19,690 |
Volkswagen Transporter 2009 Fuel consumption
Fuel consumption for the 2009 Volkswagen Transporter is dependent on the type of engine, transmission, or model chosen. The Volkswagen Transporter currently offers fuel consumption from 7.9 to 11L/100km. The Volkswagen Transporter is available with the following fuel types: Diesel and PULP.
Volkswagen Transporter Model | Body Type | Specs | Fuel Consumption | |
---|---|---|---|---|
(LWB) | Commercial | 1.9L,Diesel,5 SP MAN | 8.1L/100km | |
(LWB) | Commercial | 2.5L,Diesel,6 SP MAN | 8.4L/100km | |
(LWB) | Commercial | 2.0L,PULP,5 SP MAN | 11L/100km | |
(SWB) | Commercial | 2.0L,PULP,5 SP MAN | 11L/100km |
