Mercedes-Benz Sprinter 2005

What's on this page

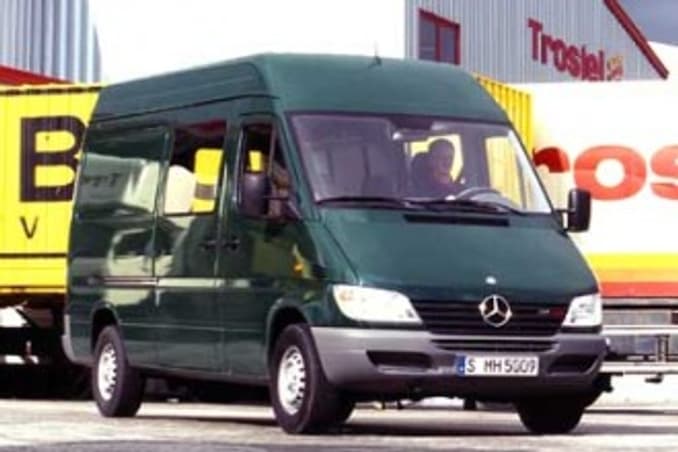

Mercedes-Benz Sprinter 2005

The 2005 Mercedes-Benz Sprinter carries a braked towing capacity of up to 2000 Kg, but check to ensure this applies to the configuration you're considering.

The Mercedes-Benz Sprinter is also known as the Freightliner Sprinter and the Dodge Sprinter in markets outside Australia.

Mercedes-Benz Sprinter 2005 Q&As

Check out real-world situations relating to the Mercedes-Benz Sprinter here, particularly what our experts have to say about them.

  • Questions about the GVM of a 2009 Mercedes-Benz LWB Sprinter

    This is an increasingly common problem for people who carry big loads and especially for those who tow heavy trailers. In some cases, as you've discovered, it's very easy to get perilously close to the GVM limit by loading up the vehicle with whatever you're carrying. And that's the catch; the vehicle's GVM includes everything on board including passengers, fuel and whatever accessories you've added to the car, not to mention the actual payload.

    Earlier this year, Queensland changed its rules regarding GVM upgrades, but you would need to speak to a specialist workshop that deals with this type of work and is familiar with the QLD regulations which may vary from other states and territories. Companies such as Pedders are qualified to carry-out GVM upgrades on some vehicles and have the engineering experience to offer a package that is certified before it's fitted to your vehicle. Whether the Sprinter's body construction has any bearing on the availability of such a kit is another thing you'd need to check with a specialist.

    The problem with exceeding your car's GVM is that it makes its potentially unsafe to drive for both you and other road users. You'll also find yourself in line for a fine and your insurance company is likely to disown you in the case of a crash in an over-loaded vehicle.

    Show more
  • Mercedes-Benz Sprinter 2004: How high should the temp gauge go?

    Normally it should be about halfway on the scale, but it could go higher than that and not be a problem as long as it doesn’t get close to the top mark.

    Show more
  • Mercedes-Benz Sprinter reduce old level error

    If it happened shortly after a service it's probably been over-filled when the oil was changed. Draining a small amount of oil out of the engine should fix it. If that's not the cause it could be a faulty sensor, and it might need replacing. If it's happening regularly, and you know the oil fill was correct it could be diesel fuel getting into the oil through a faulty injector.



    Show more
  • Best platform for a motorhome?

    I've driven both and much prefer the Sprinter. The "manumatic" in the Fiat is not good and I prefer the way the Benz sits on the road, how it performs over bumps and its resistance to crosswinds.

    Show more
See All Mercedes-Benz Sprinter Q&As
Disclaimer: You acknowledge and agree that all answers are provided as a general guide only and should not be relied upon as bespoke advice. Carsguide is not liable for the accuracy of any information provided in the answers.

Mercedes-Benz Sprinter 2005 Dimensions

Dimensions for the 2005 Mercedes-Benz Sprinter are dependent on which body type is chosen. The maximum width and height is 1994mm x 2610mm and can vary on the basis of model.

Dimensions for the Mercedes-Benz Sprinter 2005 Dimensions  include 2370mm height, 1933mm width, 4890mm length.
Mercedes-Benz Sprinter Model Body Type Height x Width x Length Ground Clearance
316CDI SWB Commercial 2345x1933x5640 mm 189 mm
311 SWB Commercial 2350x1933x5640 mm 189 mm
311 LWB Commercial 2570x1933x6590 mm 189 mm
313CDI SWB AWD Commercial 2440x1933x5640 mm 193 mm
See All Mercedes-Benz Sprinter 2005 Dimensions

Mercedes-Benz Sprinter 2005 Price and Specs

Mercedes-Benz Sprinter Model Body Type Specs Price from Price to
208CDI ESWB Commercial 2.2L Diesel 5 SP MAN
208CDI ESWB Commercial 2.2L Diesel 6 SP
308CDI LWB Commercial 2.2L Diesel 5 SP MAN
308CDI LWB Commercial 2.2L Diesel 6 SP
See All Mercedes-Benz Sprinter 2005 Pricing and Specs

Mercedes-Benz Sprinter 2005 Towing capacity

The Mercedes-Benz Sprinter has maximum towing capacity of 2000kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.

Mercedes-Benz Sprinter Model Body Type Specs Braked Capacity
316CDI LWB Commercial 2.7L,Diesel,6 SP 2000kg
311 SWB Commercial 2.2L,Diesel,6 SP 2000kg
311 LWB Commercial 2.2L,Diesel,5 SP MAN 2000kg
311 SWB Commercial 2.2L,Diesel,5 SP MAN 2000kg
See All Mercedes-Benz Sprinter 2005 Towing Capacity

Mercedes-Benz Sprinter 2005 Wheel size

Wheel size for the 2005 Mercedes-Benz Sprinter will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Mercedes-Benz Sprinter vary from 15x6 inches to 15x5.5 inches.

Mercedes-Benz Sprinter Model Body Type Front Tyre Size Front Rim Rear Tyre Size Rear Rim
316CDI LWB Commercial 225x70 R15 15x6 inches 225x70 R15 15x6 inches
311 SWB Commercial 225x70 R15 15x6 inches 225x70 R15 15x6 inches
311 LWB Commercial 225x70 R15 15x6 inches 225x70 R15 15x6 inches
313CDI SWB AWD Commercial 225x70 R15 15x6 inches 225x70 R15 15x6 inches
See All Mercedes-Benz Sprinter 2005 Wheel Sizes

Mercedes-Benz Sprinter 2005 Fuel consumption

Fuel consumption for the 2005 Mercedes-Benz Sprinter is dependent on the type of engine, transmission, or model chosen. The Mercedes-Benz Sprinter is available with the following fuel type: Diesel.

Mercedes-Benz Sprinter Model Body Type Specs Fuel Consumption
208CDI ESWB Commercial 2.2L,Diesel,5 SP MAN
208CDI ESWB Commercial 2.2L,Diesel,6 SP
308CDI LWB Commercial 2.2L,Diesel,5 SP MAN
308CDI LWB Commercial 2.2L,Diesel,6 SP
* Combined fuel consumption See All Mercedes-Benz Sprinter 2005 Pricing and Specs
