Mercedes-Benz Sprinter 2012

What's on this page

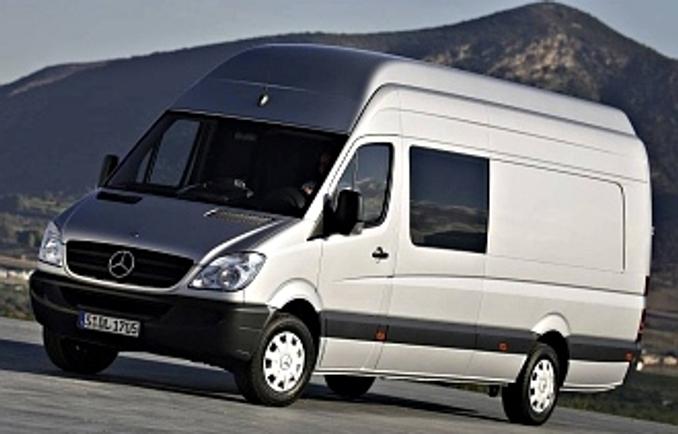

Mercedes-Benz Sprinter 2012

The 2012 Mercedes-Benz Sprinter carries a braked towing capacity of up to 2000 Kg, but check to ensure this applies to the configuration you're considering.

The Mercedes-Benz Sprinter is also known as the Freightliner Sprinter and the Dodge Sprinter in markets outside Australia.

Mercedes-Benz Sprinter 2012 Q&As

Check out real-world situations relating to the Mercedes-Benz Sprinter here, particularly what our experts have to say about them.

  • Questions about the GVM of a 2009 Mercedes-Benz LWB Sprinter

    This is an increasingly common problem for people who carry big loads and especially for those who tow heavy trailers. In some cases, as you've discovered, it's very easy to get perilously close to the GVM limit by loading up the vehicle with whatever you're carrying. And that's the catch; the vehicle's GVM includes everything on board including passengers, fuel and whatever accessories you've added to the car, not to mention the actual payload.

    Earlier this year, Queensland changed its rules regarding GVM upgrades, but you would need to speak to a specialist workshop that deals with this type of work and is familiar with the QLD regulations which may vary from other states and territories. Companies such as Pedders are qualified to carry-out GVM upgrades on some vehicles and have the engineering experience to offer a package that is certified before it's fitted to your vehicle. Whether the Sprinter's body construction has any bearing on the availability of such a kit is another thing you'd need to check with a specialist.

    The problem with exceeding your car's GVM is that it makes its potentially unsafe to drive for both you and other road users. You'll also find yourself in line for a fine and your insurance company is likely to disown you in the case of a crash in an over-loaded vehicle.

    Show more
  • Mercedes-Benz Sprinter 2004: How high should the temp gauge go?

    Normally it should be about halfway on the scale, but it could go higher than that and not be a problem as long as it doesn’t get close to the top mark.

    Show more
  • Mercedes-Benz Sprinter reduce old level error

    If it happened shortly after a service it's probably been over-filled when the oil was changed. Draining a small amount of oil out of the engine should fix it. If that's not the cause it could be a faulty sensor, and it might need replacing. If it's happening regularly, and you know the oil fill was correct it could be diesel fuel getting into the oil through a faulty injector.



    Show more
  • Best platform for a motorhome?

    I've driven both and much prefer the Sprinter. The "manumatic" in the Fiat is not good and I prefer the way the Benz sits on the road, how it performs over bumps and its resistance to crosswinds.

    Show more
See All Mercedes-Benz Sprinter Q&As
Disclaimer: You acknowledge and agree that all answers are provided as a general guide only and should not be relied upon as bespoke advice. Carsguide is not liable for the accuracy of any information provided in the answers.

Mercedes-Benz Sprinter 2012 Dimensions

Dimensions for the 2012 Mercedes-Benz Sprinter are dependent on which body type is chosen. The maximum width and height is 1993mm x 2815mm and can vary on the basis of model.

Dimensions for the Mercedes-Benz Sprinter 2012 Dimensions  include 2700mm height, 1993mm width, 6945mm length.
Mercedes-Benz Sprinter Model Body Type Height x Width x Length Ground Clearance
416 CDI MWB Commercial 2535x1993x5910 mm 215 mm
316 CDI MWB (4x4) Commercial 2415x1993x5910 mm 196 mm
313 CDI LWB HI ROOF Commercial 2700x1993x6945 mm 196 mm
319 CDI LWB Commercial 2720x1993x6945 mm 196 mm
Transfer People mover 2415x1993x5910 mm 196 mm
See All Mercedes-Benz Sprinter 2012 Dimensions

Mercedes-Benz Sprinter 2012 Price and Specs

Mercedes-Benz Sprinter Model Body Type Specs Price from Price to
313 CDI LWB HI ROOF Commercial 2.1L Diesel 7 SP AUTO
313 CDI LWB HI ROOF Commercial 2.1L Diesel 5 SP AUTO
313 CDI LWB HI ROOF Commercial 2.1L Diesel 6 SP MAN
313 CDI MWB Commercial 2.1L Diesel 7 SP AUTO
Transfer People mover 2.1L Diesel 7 SP AUTO
Transfer People mover 2.1L Diesel 5 SP AUTO
See All Mercedes-Benz Sprinter 2012 Pricing and Specs

Mercedes-Benz Sprinter 2012 Towing capacity

The Mercedes-Benz Sprinter has maximum towing capacity of 2000kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.

Mercedes-Benz Sprinter Model Body Type Specs Braked Capacity
319 CDI LWB Commercial 3.0L,Diesel,7 SP AUTO 2000kg
313 CDI MWB Commercial 2.1L,Diesel,7 SP AUTO 2000kg
416 CDI LWB Commercial 2.1L,Diesel,5 SP AUTO 2000kg
516 CDI LWB Commercial 2.1L,Diesel,7 SP AUTO 2000kg
Transfer People mover 2.1L,Diesel,7 SP AUTO 2000kg
Transfer People mover 2.1L,Diesel,5 SP AUTO 2000kg
See All Mercedes-Benz Sprinter 2012 Towing Capacity

Mercedes-Benz Sprinter 2012 Wheel size

Wheel size for the 2012 Mercedes-Benz Sprinter will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted.

Mercedes-Benz Sprinter Model Body Type Front Tyre Size Front Rim Rear Tyre Size Rear Rim
416 CDI MWB Commercial 205x75 R16 16x5.5 inches 285x65 R16 16x8.5 inches
316 CDI MWB (4x4) Commercial 235x65 R16 16x6.5 inches 235x65 R16 16x6.5 inches
313 CDI LWB HI ROOF Commercial 235x65 R16 16x6.5 inches 235x65 R16 16x6.5 inches
319 CDI LWB Commercial 235x65 R16 16x6.5 inches 235x65 R16 16x6.5 inches
Transfer People mover 235x65 R16 235x65 R16
See All Mercedes-Benz Sprinter 2012 Wheel Sizes

Mercedes-Benz Sprinter 2012 Fuel consumption

Fuel consumption for the 2012 Mercedes-Benz Sprinter is dependent on the type of engine, transmission, or model chosen. The Mercedes-Benz Sprinter is available with the following fuel types: Diesel and ULP.

Mercedes-Benz Sprinter Model Body Type Specs Fuel Consumption
313 CDI LWB HI ROOF Commercial 2.1L,Diesel,7 SP AUTO
316 NGT LWB Commercial 1.8L,ULP,7 SP AUTO
Transfer People mover 2.1L,Diesel,5 SP AUTO
Transfer People mover 2.1L,Diesel,7 SP AUTO
* Combined fuel consumption See All Mercedes-Benz Sprinter 2012 Pricing and Specs
