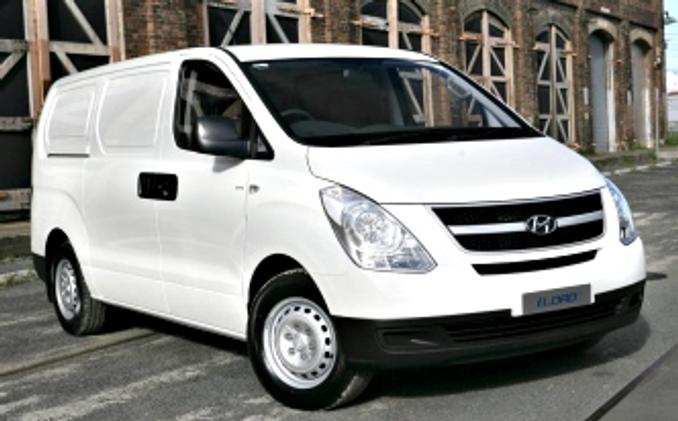

Hyundai iLOAD 2012
The 2012 Hyundai iLoad carries a braked towing capacity of up to 2000 Kg, but check to ensure this applies to the configuration you're considering.
Hyundai iLOAD 2012 Dimensions
Dimensions for the 2012 Hyundai iLoad are dependent on which body type is chosen. The maximum width and height is 1920mm x 1935mm and can vary on the basis of model.
| Hyundai iLoad Model | Body Type | Height x Width x Length | Ground Clearance | |
|---|---|---|---|---|
| base | Commercial | 1935x1920x5125 mm | 190 mm | |
| Crew | Commercial | 1935x1920x5125 mm | 190 mm | |
Hyundai iLOAD 2012 Q&As
Check out real-world situations relating to the Hyundai iLOAD 2012 here, particularly what our experts have to say about them.
-
Hyundai iLoad 2013: Model year clarification
What you bought is a 2012 model car, because that's the year it was built. Even if it is called an MY13, the clock starts from the day it was finished on the production line and stamped with its VIN plate. The confusion comes because lots of car companies now have specifications that change earlier than January 1, a practice that began in the US, and which they refer to as Model Year this or that.
Show more -
Hyundai iLoad 2012: Manual backlash clunk
I've driven quite a few iLoads and none has exhibited the problem you talk about, and we've had no other reports of this issue from other owners, so it could well be something affecting your van alone. I would persist with the dealer and ask for a fix of some description, which could case of adjusting pinion preload, and if you aren't satisfied with your dealer's response take your complaint further up the chain by talking directly to Hyundai.
Show more
Hyundai iLOAD 2012 Price and Specs
Pricing guides
| Hyundai Iload Model | Body Type | Specs | Price from | Price to | |
|---|---|---|---|---|---|
| (base) | Commercial | 2.5L Diesel 5 SP AUTO | $13,000 | $18,810 | |
| (base) | Commercial | 2.5L Diesel 6 SP MAN | $12,600 | $18,260 | |
| (base) | Commercial | 2.5L Diesel 5 SP MAN | $12,200 | $17,600 | |
| (base) | Commercial | 2.4L PULP 5 SP MAN | $10,100 | $15,290 | |
Hyundai iLOAD 2012 Towing capacity
The Hyundai iLoad’s towing capacity ranges from 1500kg to 2000kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
| Hyundai iLoad Model | Body Type | Specs | Braked Capacity | |
|---|---|---|---|---|
| base | Commercial | 2.4L,PULP,5 SP MAN | 1500kg | |
| Crew | Commercial | 2.4L,PULP,5 SP MAN | 1500kg | |
| base | Commercial | 2.5L,Diesel,5 SP MAN | 2000kg | |
| base | Commercial | 2.5L,Diesel,6 SP MAN | 2000kg | |
Hyundai iLOAD 2012 Wheel size
Wheel size for the 2012 Hyundai iLoad will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Hyundai iLoad spans from 16x6.5 inches.
| Hyundai iLoad Model | Body Type | Front Tyre Size | Front Rim | Rear Tyre Size | Rear Rim | |
|---|---|---|---|---|---|---|
| base | Commercial | 215x70 R16 | 16x6.5 inches | 215x70 R16 | 16x6.5 inches | |
| Crew | Commercial | 215x70 R16 | 16x6.5 inches | 215x70 R16 | 16x6.5 inches | |
Hyundai iLOAD 2012 Fuel consumption
Fuel consumption for the 2012 Hyundai iLoad is dependent on the type of engine, transmission, or model chosen. The Hyundai iLoad currently offers fuel consumption from 8 to 10.1L/100km. The Hyundai iLoad is available with the following fuel types: PULP and Diesel.
| Hyundai iLoad Model | Body Type | Specs | Fuel Consumption | |
|---|---|---|---|---|
| Crew | Commercial | 2.4L,PULP,5 SP MAN | 10.1L/100km | |
| base | Commercial | 2.5L,Diesel,6 SP MAN | 8L/100km | |
| base | Commercial | 2.5L,Diesel,5 SP MAN | 8.5L/100km | |
| base | Commercial | 2.4L,PULP,5 SP MAN | 10.1L/100km | |
