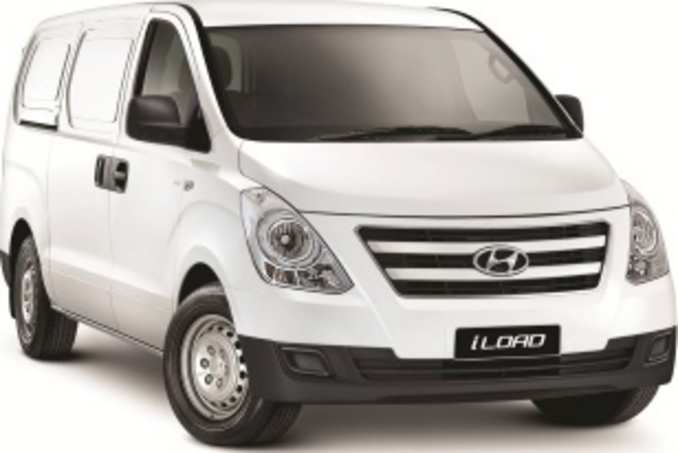

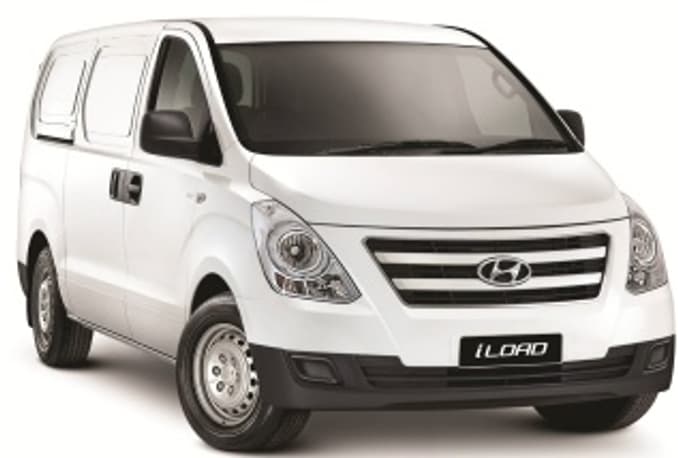

Hyundai ILOAD 2016

What's on this page

Hyundai ILOAD 2016

The 2016 Hyundai iLoad range of configurations is currently priced from $18,990.

The 2016 Hyundai iLoad carries a braked towing capacity of up to 2000 Kg, but check to ensure this applies to the configuration you're considering.

Hyundai ILOAD 2016 Dimensions

Dimensions for the 2016 Hyundai iLoad are dependent on which body type is chosen. The maximum width and height is 1920mm x 1935mm and can vary on the basis of model.

Dimensions for the Hyundai ILOAD 2016 Dimensions  include 1935mm height, 1920mm width, 5125mm length.
Hyundai iLoad Model Body Type Height x Width x Length Ground Clearance
base Commercial 1935x1920x5125 mm 190 mm
3S Liftback Commercial 1935x1920x5125 mm 190 mm
Crew 6S Liftback Commercial 1935x1920x5125 mm 190 mm
3S Twin Swing Commercial 1935x1920x5125 mm 190 mm
See All Hyundai ILOAD 2016 Dimensions

Hyundai ILOAD 2016 Q&As

Check out real-world situations relating to the Hyundai iLoad here, particularly what our experts have to say about them.

  • Are there any problems with the diesel engines in the 2017 Hyundai iLoad?

    Hyundai’s diesel engines are generally regarded as being among the better ones on the market. That’s probably because the South Korean domestic market has been switched on to small capacity diesels for decades and, as a result, Hyundai has been building them just as long.

    But, like any modern turbo-diesel, the iLoad’s diesel can be prone to a build-up of black gunk in the intake system, a result of diesel soot and oil mist mixing as part of the vehicle’s own emissions-control systems. The other problem that has cropped up a few times now is a failed turbocharger unit. Generally, this has been the result of a blocked oilway that feeds lubricating oil to the turbo’s bearing. This is a narrow oilway and any sludge in the engine can block it and starve the turbo of its oil. Which is when the turbo itself fails.

    That’s far more likely to happen in a vehicle that has not had the correct maintenance with regards oil changes. So check the service handbook before handing over the cash and only buy a second-hand iLoad with a full and correct service history.



    Show more
  • What is the best van for a camper conversion for less than $15000?

    The Hyundai iLoad/iMax is a great buy for what you intend to use it for, as they're big, robust and roomy boxes on wheels. Not especially quiet, refined or car-like, but well suited to a camper conversion.

    However, you must ensure that the example you are looking at has a full and regular service record. This is because the well-known diesel engine and turbo failures are connected with lapsed servicing. It seems oil sludge builds up, thus starving the engine and turbo of sufficient lubrication.

    But here's the tricky bit. Hyundai recommended that all scheduled servicing was carried out every 15,000km, when actually 10,000km maximum was closer to the truth for vans that were driven regularly or had a hard life. Which is most of them.

    So, you need to buy on condition as well as service history, to ensure you get the promised long-life out of the iLoad/iMax. If that's the case, you can expect to hit 300,000km without any major issues. Just get that oil changed regularly!

    Show more
  • Hyundai iLoad 2009: Can I replace the engine?

    I don't believe there is one, but try the Castlemaine Rod Shop (03 5472 2853) as they do a lot of that sort of thing and might have something they could help you with. If they don’t you could have the conversion done by a Vicroads accredited engineer, but it would an expensive exercise and I would think it would be more economical to buy a replacement diesel engine for your van.

    Show more
  • Hyundai iLoad: How reliable is the engine and turbo?

    The key to getting a decent run out of the iLoad is to change the oil more frequently. Change it every 5000 km. But if you’re not sure about its reliability certainly walk away. The HiAce is probably the best bet for you, but you could consider a VW Transporter, Mercedes-Benz Vito or Renault Trafic.

    Show more
See All Hyundai iLoad Q&As
Disclaimer: You acknowledge and agree that all answers are provided as a general guide only and should not be relied upon as bespoke advice. Carsguide is not liable for the accuracy of any information provided in the answers.

Hyundai ILOAD 2016 Price and Specs

The Hyundai ILOAD 2016 is currently available from $18,990 for the Iload (base) up to $36,888 for the Iload Crew 6S Twin Swing.

Pricing guides

$26,990
Based on 180 cars listed for sale in the last 6 months
Lowest Price
$18,990
Highest Price
$36,888
Hyundai Iload Model Body Type Specs Price from Price to
3S Liftback Commercial 2.5L Diesel 5 SP AUTO $20,700 $28,050
3S Liftback Commercial 2.5L Diesel 6 SP MAN $20,600 $27,940
3S Liftback Commercial 2.4L PULP 5 SP MAN $17,000 $23,650
3S Twin Swing Commercial 2.5L Diesel 5 SP AUTO $22,400 $30,470
See All Hyundai ILOAD 2016 Pricing and Specs

Hyundai ILOAD 2016 Towing capacity

The Hyundai iLoad’s towing capacity ranges from 1500kg to 2000kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.

Hyundai iLoad Model Body Type Specs Braked Capacity
base Commercial 2.4L,PULP,5 SP MAN 1500kg
3S Liftback Commercial 2.4L,PULP,5 SP MAN 1500kg
3S Liftback Commercial 2.5L,Diesel,6 SP MAN 2000kg
Crew 6S Liftback Commercial 2.5L,Diesel,6 SP MAN 2000kg
See All Hyundai ILOAD 2016 Towing Capacity

Hyundai ILOAD 2016 Wheel size

Wheel size for the 2016 Hyundai iLoad will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Hyundai iLoad spans from 16x6.5 inches.

Hyundai iLoad Model Body Type Front Tyre Size Front Rim Rear Tyre Size Rear Rim
base Commercial 215x70 R16 16x6.5 inches 215x70 R16 16x6.5 inches
3S Liftback Commercial 215x70 R16 16x6.5 inches 215x70 R16 16x6.5 inches
Crew 6S Liftback Commercial 215x70 R16 16x6.5 inches 215x70 R16 16x6.5 inches
3S Twin Swing Commercial 215x70 R16 16x6.5 inches 215x70 R16 16x6.5 inches
See All Hyundai ILOAD 2016 Wheel Sizes

Hyundai ILOAD 2016 Fuel consumption

Fuel consumption for the 2016 Hyundai iLoad is dependent on the type of engine, transmission, or model chosen. The Hyundai iLoad currently offers fuel consumption from 7.6 to 10.1L/100km. The Hyundai iLoad is available with the following fuel types: Diesel and PULP.

Hyundai iLoad Model Body Type Specs Fuel Consumption
3S Liftback Commercial 2.5L,Diesel,6 SP MAN 7.6L/100km
3S Liftback Commercial 2.5L,Diesel,5 SP AUTO 8.8L/100km
3S Liftback Commercial 2.4L,PULP,5 SP MAN 10.1L/100km
base Commercial 2.4L,PULP,5 SP MAN 10.1L/100km
* Combined fuel consumption See All Hyundai ILOAD 2016 Pricing and Specs
