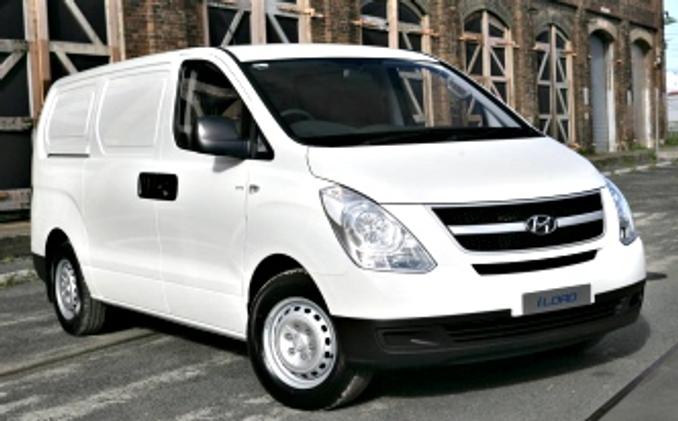

Hyundai ILOAD 2011
The 2011 Hyundai iLoad carries a braked towing capacity of up to 2000 Kg, but check to ensure this applies to the configuration you're considering.
Hyundai iLoad Reviews
Ford Transit Custom vs Hyundai iLoad vs Toyota HiAce LWB comparison review
Hyundai iLoad 2020 review
Hyundai iLoad 2018 review
Hyundai iLoad diesel auto 2017 review
Hyundai iLoad diesel 2014 Review
Large Commercial Van 2012 Review
Hyundai ILOAD 2011 Dimensions
Dimensions for the 2011 Hyundai iLoad are dependent on which body type is chosen. The maximum width and height is 1920mm x 1935mm and can vary on the basis of model.
| Hyundai iLoad Model | Body Type | Height x Width x Length | Ground Clearance | |
|---|---|---|---|---|
| base | Commercial | 1935x1920x5125 mm | 190 mm | |
| Crew | Commercial | 1935x1920x5125 mm | 190 mm | |
Hyundai ILOAD 2011 Q&As
Check out real-world situations relating to the Hyundai ILOAD 2011 here, particularly what our experts have to say about them.
-
Are there known transmission problems with the 2011 Hyundai iLoad?
There doesn't seem to be a huge number of similar complaints to yours, Len, but that's pretty cold comfort. You could have a problem with the transmission itself or the electronics that control it. Either way, it could be that the transmission is stuck in high gear as a form of limp-home mode to avoid doing any further damage to itself.
The first step is to have the vehicle scanned for fault codes. Sometimes, a fault will be logged that seems to have nothing to do with the symptom, but can still cause the havoc you're experiencing. Try a transmission specialist first, as it's a fair bet they will have seen this exact problem once or twice before.
Show more -
Hyundai iLoad: LPG conversion
Impco have an approved kit for the iLoad and they are one of the industry heavyweights, so I would suggest you seek out one of their dealers.
Show more
Hyundai ILOAD 2011 Price and Specs
Pricing guides
| Hyundai Iload Model | Body Type | Specs | Price from | Price to | |
|---|---|---|---|---|---|
| (base) | Commercial | 2.5L Diesel 5 SP AUTO | $12,980 | $17,270 | |
| (base) | Commercial | 2.5L Diesel 5 SP MAN | $10,670 | $14,630 | |
| (base) | Commercial | 2.4L PULP 5 SP MAN | $10,230 | $13,970 | |
| Crew | Commercial | 2.5L Diesel 5 SP AUTO | $13,860 | $18,260 | |
Hyundai ILOAD 2011 Towing capacity
The Hyundai iLoad’s towing capacity ranges from 1500kg to 2000kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
| Hyundai iLoad Model | Body Type | Specs | Braked Capacity | |
|---|---|---|---|---|
| base | Commercial | 2.4L,PULP,5 SP MAN | 1500kg | |
| Crew | Commercial | 2.4L,PULP,5 SP MAN | 1500kg | |
| base | Commercial | 2.5L,Diesel,5 SP MAN | 2000kg | |
| Crew | Commercial | 2.5L,Diesel,5 SP MAN | 2000kg | |
Hyundai ILOAD 2011 Wheel size
Wheel size for the 2011 Hyundai iLoad will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Hyundai iLoad spans from 16x6.5 inches.
| Hyundai iLoad Model | Body Type | Front Tyre Size | Front Rim | Rear Tyre Size | Rear Rim | |
|---|---|---|---|---|---|---|
| base | Commercial | 215x70 R16 | 16x6.5 inches | 215x70 R16 | 16x6.5 inches | |
| Crew | Commercial | 215x70 R16 | 16x6.5 inches | 215x70 R16 | 16x6.5 inches | |
Hyundai ILOAD 2011 Fuel consumption
Fuel consumption for the 2011 Hyundai iLoad is dependent on the type of engine, transmission, or model chosen. The Hyundai iLoad currently offers fuel consumption from 8.5 to 10.1L/100km. The Hyundai iLoad is available with the following fuel types: PULP and Diesel.
| Hyundai iLoad Model | Body Type | Specs | Fuel Consumption | |
|---|---|---|---|---|
| Crew | Commercial | 2.4L,PULP,5 SP MAN | 10.1L/100km | |
| base | Commercial | 2.5L,Diesel,5 SP MAN | 8.5L/100km | |
| base | Commercial | 2.5L,Diesel,5 SP AUTO | 9.6L/100km | |
| base | Commercial | 2.4L,PULP,5 SP MAN | 10.1L/100km | |
