Ford Transit Custom 2016

What's on this page

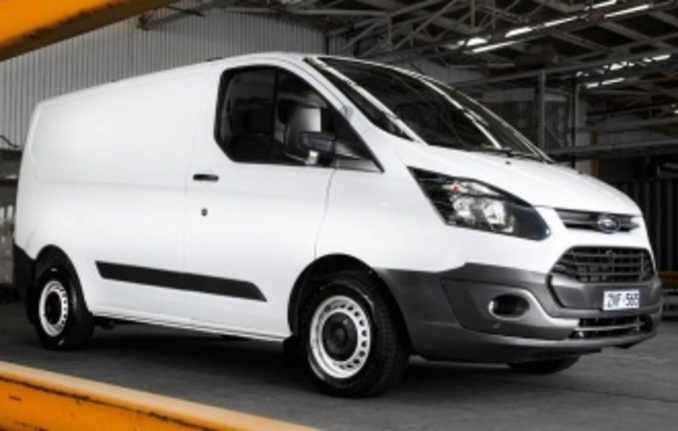

Ford Transit Custom 2016

The 2016 Ford Transit Custom range of configurations is currently priced from $27,999. Our most recent review of the 2016 Ford Transit Custom resulted in a score of 8 out of 10 for that particular example.

Carsguide Contributing Journalist Mark Oastler had this to say at the time: The Ford Transit Custom SWB reflects strong competition in the commercial van segment, with numerous refinements that drivers could only dream about a few years ago. It combines sharp styling and good cabin comfort with a strong mechanical package, easy loading with numerous carrying options and efficient performance at or near full payload. Sure, the modern commercial van buyer is increasingly spoilt for choice, but the Transit remains a stand-out without a hint of complacency about it.

You can read the full review here.

The 2016 Ford Transit Custom carries a braked towing capacity of up to 2800 Kg, but check to ensure this applies to the configuration you're considering.

The Ford Transit Custom is also known as the Ford Tourneo Custom and the Ford New Transit (China) in markets outside Australia.

Ford Transit Custom 2016 Q&As

Check out real-world situations relating to the Ford Transit Custom here, particularly what our experts have to say about them.

See All Ford Transit Custom Q&As
Disclaimer: You acknowledge and agree that all answers are provided as a general guide only and should not be relied upon as bespoke advice. Carsguide is not liable for the accuracy of any information provided in the answers.

Ford Transit Custom 2016 Wheel size

Wheel size for the 2016 Ford Transit Custom will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Ford Transit Custom vary from 15x6.5 inches to 16x6.5 inches.

Ford Transit Custom Model Body Type Front Tyre Size Front Rim Rear Tyre Size Rear Rim
290S (swb) Commercial 215x65 R15 15x6.5 inches 215x65 R15 15x6.5 inches
330L (lwb) Commercial 215x65 R15 15x6.5 inches 215x65 R15 15x6.5 inches
290S (swb) Commercial 215x65 R15 15x6.5 inches 215x65 R16 16x6.5 inches
340L (lwb) Commercial 215x65 R16 16x6.5 inches 215x65 R16 16x6.5 inches
See All Ford Transit Custom 2016 Wheel Sizes

Ford Transit Custom 2016 Dimensions

Dimensions for the 2016 Ford Transit Custom are dependent on which body type is chosen. The maximum width and height is 2032mm x 2146mm and can vary on the basis of model.

Dimensions for the Ford Transit Custom 2016 Dimensions  include 2131mm height, 1986mm width, 4972mm length.
Ford Transit Custom Model Body Type Height x Width x Length Ground Clearance
290S (swb) Commercial 1976x2032x4972 mm 118 mm
330L (lwb) Commercial 2002x1986x5339 mm 118 mm
290S (swb) Commercial 2131x1986x4972 mm 118 mm
340L (lwb) Commercial 2131x1986x4972 mm 118 mm
See All Ford Transit Custom 2016 Dimensions

Ford Transit Custom 2016 Towing capacity

The Ford Transit Custom’s towing capacity ranges from 2000kg to 2800kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.

Ford Transit Custom Model Body Type Specs Braked Capacity
290S (swb) Commercial 2.2L,Diesel,6 SP MAN 2000kg
290S (swb) Commercial 2.0L,Diesel,6 SP MAN 2500kg
330L (lwb) Commercial 2.2L,Diesel,6 SP MAN 2500kg
340L (lwb) Commercial 2.0L,Diesel,6 SP MAN 2800kg
See All Ford Transit Custom 2016 Towing Capacity

Ford Transit Custom 2016 Price and Specs

The Ford Transit Custom 2016 is currently available from $27,999 for the Transit Custom 290S (swb) up to $29,965 for the Transit Custom 290S (swb).

Pricing guides

$29,478
Based on 4 cars listed for sale in the last 6 months
Lowest Price
$27,999
Highest Price
$29,965
Ford Transit Custom Model Body Type Specs Price from Price to
290S (swb) Commercial 2.0L Diesel 6 SP MAN $18,100 $25,190
290S (swb) Commercial 2.2L Diesel 6 SP MAN $21,400 $29,040
330L (lwb) Commercial 2.2L Diesel 6 SP MAN $22,500 $30,580
340L (lwb) Commercial 2.0L Diesel 6 SP AUTO $20,700 $28,160
See All Ford Transit Custom 2016 Pricing and Specs

Ford Transit Custom 2016 Fuel consumption

Fuel consumption for the 2016 Ford Transit Custom is dependent on the type of engine, transmission, or model chosen. The Ford Transit Custom currently offers fuel consumption from 6.4 to 7.3L/100km. The Ford Transit Custom is available with the following fuel type: Diesel.

Ford Transit Custom Model Body Type Specs Fuel Consumption
290S (swb) Commercial 2.0L,Diesel,6 SP MAN 6.4L/100km
290S (swb) Commercial 2.2L,Diesel,6 SP MAN 7.1L/100km
330L (lwb) Commercial 2.2L,Diesel,6 SP MAN 7.3L/100km
340L (lwb) Commercial 2.0L,Diesel,6 SP MAN 6.6L/100km
* Combined fuel consumption See All Ford Transit Custom 2016 Pricing and Specs
