Hyundai IMAX 2009

What's on this page

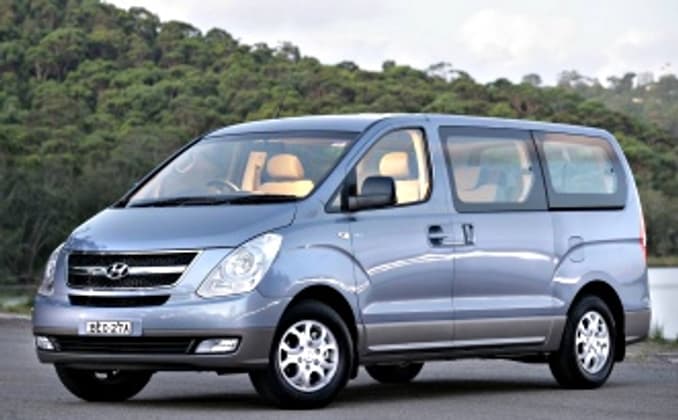

Hyundai IMAX 2009

The 2009 Hyundai iMax range of configurations is currently priced from $9,800.

The 2009 Hyundai iMax carries a braked towing capacity of up to 2000 Kg, but check to ensure this applies to the configuration you're considering.

Hyundai IMAX 2009 Price and Specs

The Hyundai IMAX 2009 is currently available from $9,800 for the Imax (base) up to $16,881 for the Imax (base).

Pricing guides

$13,995
Based on 26 cars listed for sale in the last 6 months
Lowest Price
$9,800
Highest Price
$16,881
Hyundai Imax Model Body Type Specs Price from Price to
(base) People mover 2.5L Diesel 5 SP AUTO $10,600 $15,620
(base) People mover 2.5L Diesel 5 SP MAN $9,700 $14,630
(base) People mover 2.4L PULP 4 SP AUTO $8,200 $12,760
See All Hyundai IMAX 2009 Pricing and Specs

Hyundai IMAX 2009 Dimensions

Dimensions for the 2009 Hyundai iMax are dependent on which body type is chosen. The maximum width and height is 1920mm x 1925mm and can vary on the basis of model.

Dimensions for the Hyundai IMAX 2009 Dimensions  include 1925mm height, 1920mm width, 5125mm length.
Hyundai iMax Model Body Type Height x Width x Length Ground Clearance
base People mover 1925x1920x5125 mm 190 mm
See All Hyundai IMAX 2009 Dimensions

Hyundai IMAX 2009 Q&As

Check out real-world situations relating to the Hyundai iMax here, particularly what our experts have to say about them.

  • What is the best van for a camper conversion for less than $15000?

    The Hyundai iLoad/iMax is a great buy for what you intend to use it for, as they're big, robust and roomy boxes on wheels. Not especially quiet, refined or car-like, but well suited to a camper conversion.

    However, you must ensure that the example you are looking at has a full and regular service record. This is because the well-known diesel engine and turbo failures are connected with lapsed servicing. It seems oil sludge builds up, thus starving the engine and turbo of sufficient lubrication.

    But here's the tricky bit. Hyundai recommended that all scheduled servicing was carried out every 15,000km, when actually 10,000km maximum was closer to the truth for vans that were driven regularly or had a hard life. Which is most of them.

    So, you need to buy on condition as well as service history, to ensure you get the promised long-life out of the iLoad/iMax. If that's the case, you can expect to hit 300,000km without any major issues. Just get that oil changed regularly!

    Show more
  • What are the best 7-seat SUV's?

    A better option for someone with a tribe to transport would be a peoplemover, such as the Kia Carnival, Hyundai iMax, or VW Transporter. They’re made for that purpose and much more practical than an SUV.

    Show more
  • Which big family cars do you recommend?

    I don’t believe there’s an SUV that would meet your needs. The best and most sensible solution would be a peoplemover, like a Toyota Tarago, Hyundai iMax, VW Transporter.

    Show more
  • Burnt clutch on a Hyundai iMax

    The damage to the clutch was caused by you driving it for a kilometre instead of immediately calling for a tow truck. I doubt that you would get anywhere with the supplier.

    Show more
See All Hyundai iMax Q&As
Disclaimer: You acknowledge and agree that all answers are provided as a general guide only and should not be relied upon as bespoke advice. Carsguide is not liable for the accuracy of any information provided in the answers.

Hyundai IMAX 2009 Towing capacity

The Hyundai iMax’s towing capacity ranges from 1500kg to 2000kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.

Hyundai iMax Model Body Type Specs Braked Capacity
base People mover 2.4L,PULP,4 SP AUTO 1500kg
base People mover 2.5L,Diesel,5 SP MAN 2000kg
base People mover 2.5L,Diesel,5 SP AUTO 1500kg
See All Hyundai IMAX 2009 Towing Capacity

Hyundai IMAX 2009 Fuel consumption

Fuel consumption for the 2009 Hyundai iMax is dependent on the type of engine, transmission, or model chosen. The Hyundai iMax currently offers fuel consumption from 8.5 to 10.6L/100km. The Hyundai iMax is available with the following fuel types: Diesel and PULP.

Hyundai iMax Model Body Type Specs Fuel Consumption
base People mover 2.5L,Diesel,5 SP MAN 8.5L/100km
base People mover 2.5L,Diesel,5 SP AUTO 9.8L/100km
base People mover 2.4L,PULP,4 SP AUTO 10.6L/100km
* Combined fuel consumption See All Hyundai IMAX 2009 Pricing and Specs

Hyundai IMAX 2009 Wheel size

Wheel size for the 2009 Hyundai iMax will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Hyundai iMax spans from 16x6.5 inches.

Hyundai iMax Model Body Type Front Tyre Size Front Rim Rear Tyre Size Rear Rim
base People mover 215x70 R16 16x6.5 inches 215x70 R16 16x6.5 inches
See All Hyundai IMAX 2009 Wheel Sizes
