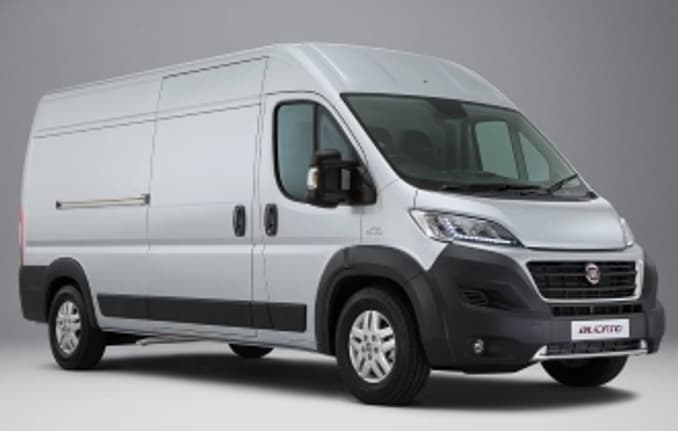

Fiat DUCATO 2015
The 2015 Fiat Ducato carries a braked towing capacity of up to 3000 Kg, but check to ensure this applies to the configuration you're considering.
The Fiat Ducato is also known as the Citroën Jumper, the Citroën Relay, the Peugeot Boxer and the Ram ProMaster in markets outside Australia.
Fiat DUCATO 2015 Q&As
Check out real-world situations relating to the Fiat DUCATO 2015 here, particularly what our experts have to say about them.
-
Best platform for a motorhome?
I've driven both and much prefer the Sprinter. The "manumatic" in the Fiat is not good and I prefer the way the Benz sits on the road, how it performs over bumps and its resistance to crosswinds.
Show more
Fiat DUCATO 2015 Dimensions
Dimensions for the 2015 Fiat Ducato are dependent on which body type is chosen. The maximum width and height is 2050mm x 2539mm and can vary on the basis of model.
| Fiat Ducato Model | Body Type | Height x Width x Length | Ground Clearance | |
|---|---|---|---|---|
| SWB/Low | Commercial | 2254x2050x4963 mm | 150 mm | |
| MWB/Low | Commercial | 2269x2050x5413 mm | 150 mm | |
| MWB/Mid | Commercial | 2539x2050x5413 mm | 150 mm | |
| LWB/Mid | Commercial | 2534x2050x5998 mm | 150 mm | |
Fiat DUCATO 2015 Wheel size
Wheel size for the 2015 Fiat Ducato will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Fiat Ducato spans from 16x6 inches.
| Fiat Ducato Model | Body Type | Front Tyre Size | Front Rim | Rear Tyre Size | Rear Rim | |
|---|---|---|---|---|---|---|
| SWB/Low | Commercial | 215x75 R16 | 16x6 inches | 215x75 R16 | 16x6 inches | |
| MWB/Low | Commercial | 225x75 R16 | 16x6 inches | 225x75 R16 | 16x6 inches | |
| MWB/Mid | Commercial | 225x75 R16 | 16x6 inches | 225x75 R16 | 16x6 inches | |
| LWB/Mid | Commercial | 225x75 R16 | 16x6 inches | 225x75 R16 | 16x6 inches | |
Fiat DUCATO 2015 Towing capacity
The Fiat Ducato has maximum towing capacity of 3000kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
| Fiat Ducato Model | Body Type | Specs | Braked Capacity | |
|---|---|---|---|---|
| SWB/Low | Commercial | 3.0L,Diesel,6 SP MAN | 3000kg | |
| MWB/Low | Commercial | 3.0L,Diesel,6 SP MAN | 3000kg | |
| SWB/Low | Commercial | 3.0L,Diesel,6 SP AUTO | 3000kg | |
| MWB/Low | Commercial | 3.0L,Diesel,6 SP AUTO | 3000kg | |
Fiat DUCATO 2015 Fuel consumption
Fuel consumption for the 2015 Fiat Ducato is dependent on the type of engine, transmission, or model chosen. The Fiat Ducato is available with the following fuel type: Diesel.
| Fiat Ducato Model | Body Type | Specs | Fuel Consumption | |
|---|---|---|---|---|
| LWB/Mid | Commercial | 3.0L,Diesel,6 SP AUTO | — | |
| MWB/Low | Commercial | 3.0L,Diesel,6 SP AUTO | — | |
| MWB/Low | Commercial | 3.0L,Diesel,6 SP MAN | — | |
| MWB/Mid | Commercial | 3.0L,Diesel,6 SP MAN | — | |
