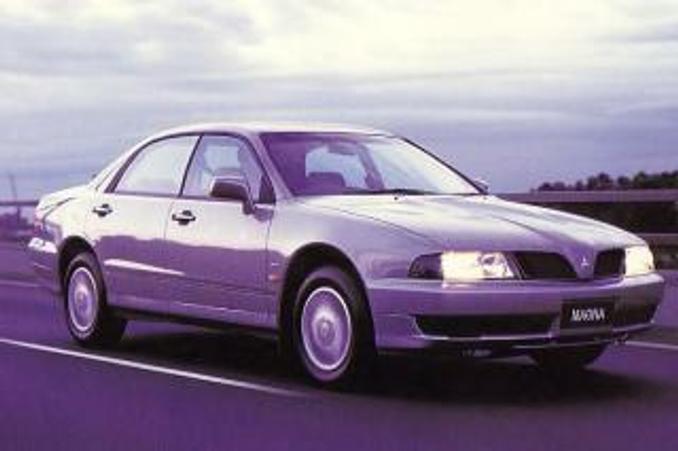

Mitsubishi Magna 2003
This is what Ewan Kennedy liked most about this particular version of the Mitsubishi Magna: Good AWD, Reasonably spacious underbonnet area
The 2003 Mitsubishi Magna carries a braked towing capacity of up to 1500 Kg, but check to ensure this applies to the configuration you're considering.
Mitsubishi Magna 2003 Q&As
Check out real-world situations relating to the Mitsubishi Magna 2003 here, particularly what our experts have to say about them.
-
Is my car overheating?
All the symptoms you describe suggest the engine is getting hot to the point it’s boiling, but the gauge should be indicating it’s hot by moving to the hot end of the scale. That’s if it’s working. Make sure the coolant is topped up, and check the electric fan to make sure it is working. I would run the engine at idle with the automatic transmission in drive for a period of 10 minutes and watch the temperature gauge. If it does check to see if the electric cooling fan is running, it it’s not running switch on the air-conditioning and see if it runs then. If it does there could be a problem with the fan sensor.
Show more -
TJ Mitsubishi Magna overheating
If it smells like it's burning then it is probably overheating. Don't take too much notice of the gauge, because it could be faulty. You need to find out why the fan isn't working, which could be because of a wiring issue, a blown fuse, or a burnt-out electric motor, and get it fixed.
Show more -
Mitsubishi Magna timing belt
Magna belts are generally pretty durable, but the recommended change time is 100,000 km.
Show more -
Ask Smithy Xtra best conversion system for Magna
Any of the quality brands would perform well on the Magna. IMPCO made the air-valve system used by Mitsubishi on the cars supplied from the factory with LPG. It’s generally regarded as bulletproof, so that’s certainly one to consider.
Show more
Mitsubishi Magna 2003 Price and Specs
Pricing guides
| Mitsubishi Magna Model | Body Type | Specs | Price from | Price to | |
|---|---|---|---|---|---|
| Advance | Sedan | 3.5L ULP 4 SP AUTO | $3,190 | $4,950 | |
| AWD | Sedan | 3.5L ULP 5 SP AUTO | $3,850 | $5,720 | |
| ES | Sedan | 3.5L ULP 4 SP AUTO | $2,970 | $4,620 | |
| ES | Sedan | 3.5L ULP 5 SP MAN | $2,860 | $4,400 | |
| Advance | Wagon | 3.5L ULP 4 SP AUTO | $3,300 | $5,170 | |
| ES | Wagon | 3.5L ULP 4 SP AUTO | $3,080 | $4,840 | |
| Executive | Wagon | 3.5L ULP 4 SP AUTO | $2,970 | $4,620 | |
| LS | Wagon | 3.5L ULP 4 SP AUTO | $3,410 | $5,390 | |
Mitsubishi Magna 2003 Wheel size
Wheel size for the 2003 Mitsubishi Magna will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Mitsubishi Magna vary from 15x6 inches to 17x7 inches.
| Mitsubishi Magna Model | Body Type | Front Tyre Size | Front Rim | Rear Tyre Size | Rear Rim | |
|---|---|---|---|---|---|---|
| Executive | Sedan | 205x65 R15 | 15x6 inches | 205x65 R15 | 15x6 inches | |
| ES | Sedan | 205x65 R15 | 15x6 inches | 205x65 R15 | 15x6 inches | |
| LE | Sedan | 215x60 R16 | 16x6 inches | 215x60 R16 | 16x6 inches | |
| Executive (lpg) | Sedan | 205x65 R15 | 15x6 inches | 205x65 R15 | 15x6 inches | |
| Executive | Wagon | 205x65 R15 | 15x6 inches | 205x65 R15 | 15x6 inches | |
| ES | Wagon | 205x65 R15 | 15x6 inches | 205x65 R15 | 15x6 inches | |
| Advance | Wagon | 205x65 R15 | 15x6 inches | 205x65 R15 | 15x6 inches | |
| LS | Wagon | 205x65 R15 | 15x6 inches | 205x65 R15 | 15x6 inches | |
Mitsubishi Magna 2003 Dimensions
Dimensions for the 2003 Mitsubishi Magna are dependent on which body type is chosen. The maximum width and height is 1809mm x 1497mm and can vary on the basis of model.
| Mitsubishi Magna Model | Body Type | Height x Width x Length | Ground Clearance | |
|---|---|---|---|---|
| Executive | Sedan | 1435x1785x4808 mm | 165 mm | |
| ES | Sedan | 1435x1785x4860 mm | 156 mm | |
| LE | Sedan | 1435x1785x4808 mm | 165 mm | |
| Executive (lpg) | Sedan | 1435x1785x4808 mm | 165 mm | |
| Executive | Wagon | 1482x1785x4832 mm | 165 mm | |
| ES | Wagon | 1497x1785x4846 mm | 165 mm | |
| Advance | Wagon | 1482x1785x4832 mm | 165 mm | |
| LS | Wagon | 1497x1785x4846 mm | 165 mm | |
Mitsubishi Magna 2003 Towing capacity
The Mitsubishi Magna’s towing capacity ranges from 0kg to 1500kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
| Mitsubishi Magna Model | Body Type | Specs | Braked Capacity | |
|---|---|---|---|---|
| Executive | Sedan | 3.5L,ULP,5 SP MAN | 1500kg | |
| ES | Sedan | 3.5L,ULP,5 SP MAN | 1500kg | |
| LE | Sedan | 3.5L,ULP,4 SP AUTO | 1500kg | |
| Executive | Sedan | 3.5L,ULP,4 SP AUTO | 1500kg | |
| Executive | Wagon | 3.5L,ULP,4 SP AUTO | 1500kg | |
| ES | Wagon | 3.5L,ULP,4 SP AUTO | 1500kg | |
| Advance | Wagon | 3.5L,ULP,4 SP AUTO | 1500kg | |
| LS | Wagon | 3.5L,ULP,4 SP AUTO | 1500kg | |
Mitsubishi Magna 2003 Fuel consumption
Fuel consumption for the 2003 Mitsubishi Magna is dependent on the type of engine, transmission, or model chosen. The Mitsubishi Magna currently offers fuel consumption from 8.5 to 11.8L/100km. The Mitsubishi Magna is available with the following fuel types: ULP and LPG.
| Mitsubishi Magna Model | Body Type | Specs | Fuel Consumption | |
|---|---|---|---|---|
| Advance | Sedan | 3.5L,ULP,4 SP AUTO | 8.6L/100km | |
| ES (lpg) | Sedan | 3.5L,LPG,4 SP AUTO | 11.8L/100km | |
| Advance | Wagon | 3.5L,ULP,4 SP AUTO | 8.9L/100km | |
| ES | Wagon | 3.5L,ULP,4 SP AUTO | 9.6L/100km | |
