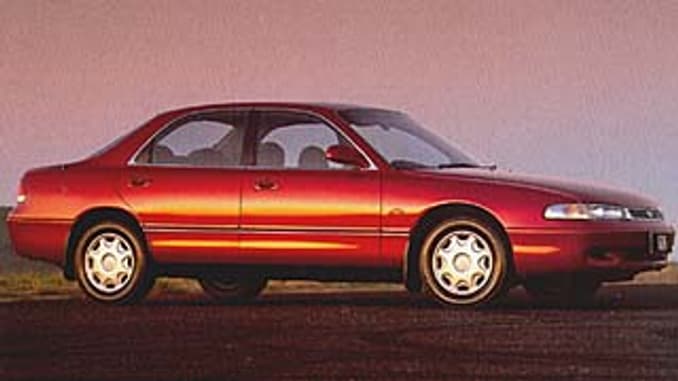

Mazda 626 1996
The 1996 Mazda 626 carries a braked towing capacity of up to 920 Kg, but check to ensure this applies to the configuration you're considering.
Mazda 626 1996 Q&As
Check out real-world situations relating to the Mazda 626 here, particularly what our experts have to say about them.
-
Value of old 626?
Not very much is the short answer. A car that has been sitting unused for 15 years or so is likely to need a lot of work, and money to get it back to decent roadworthy condition, despite the low mileage. It needs tyres and a battery, and the back seats are missing, it's worth maybe $250.
Show more -
Mazda 626 electric window issues
It's most likely the window winder motor that's the problem and you should be able to switch the motor from one of the other doors to the driver's door.
Show more -
Ask Smithy Xtra ABS in Mazda 626
Although the normal braking isn’t affected the ABS system is almost certainly disabled so you won’t have the antilock effect in an emergency. It could be as simple as a blown fuse, or it could be something deeper. Get it checked.
Show more -
Misfiring 2002 Mazda 626
The first place to start is to check all the engine tune items to make sure they are all in good shape, that's plugs and leads etc. After that I'd check the crank angle sensor and its connections.
Show more
Mazda 626 1996 Price and Specs
Pricing guides
| Mazda 626 Model | Body Type | Specs | Price from | Price to | |
|---|---|---|---|---|---|
| Eclipse | Hatchback | 2.0L ULP 4 SP AUTO | $4,070 | $6,050 | |
| Eclipse | Hatchback | 2.0L ULP 5 SP MAN | $3,850 | $5,720 | |
| Luxury V6 | Hatchback | 2.5L ULP 4 SP AUTO | $4,840 | $7,150 | |
| SDX | Hatchback | 2.0L ULP 4 SP AUTO | $4,070 | $6,050 | |
| Eclipse | Sedan | 2.0L ULP 4 SP AUTO | $3,850 | $5,720 | |
| Eclipse | Sedan | 2.0L ULP 5 SP MAN | $3,410 | $5,390 | |
| SDX | Sedan | 2.0L ULP 4 SP AUTO | $3,850 | $5,720 | |
| SDX | Sedan | 2.0L ULP 5 SP MAN | $3,410 | $5,390 | |
| Estate (5 Seat) | Wagon | 2.2L ULP 4 SP AUTO | $3,080 | $4,840 | |
| Estate (5 Seat) | Wagon | 2.2L ULP 5 SP MAN | $2,970 | $4,620 | |
| Estate (7 Seat) | Wagon | 2.2L ULP 4 SP AUTO | $3,300 | $5,170 | |
Mazda 626 1996 Fuel consumption
Fuel consumption for the 1996 Mazda 626 is dependent on the type of engine, transmission, or model chosen. The Mazda 626 currently offers fuel consumption from 8.1 to 9.8L/100km. The Mazda 626 is available with the following fuel type: ULP.
| Mazda 626 Model | Body Type | Specs | Fuel Consumption | |
|---|---|---|---|---|
| Eclipse | Hatchback | 2.0L,ULP,5 SP MAN | 8.1L/100km | |
| Eclipse | Hatchback | 2.0L,ULP,4 SP AUTO | 8.7L/100km | |
| Luxury V6 | Hatchback | 2.5L,ULP,4 SP AUTO | 9.8L/100km | |
| SDX | Hatchback | 2.0L,ULP,5 SP MAN | 8.1L/100km | |
| Eclipse | Sedan | 2.0L,ULP,4 SP AUTO | 8.7L/100km | |
| Estate (5 Seat) | Wagon | 2.2L,ULP,5 SP MAN | 8.5L/100km | |
Mazda 626 1996 Wheel size
Wheel size for the 1996 Mazda 626 will vary depending on model chosen, although keep in mind that many manufacturers offer alternate wheel sizes as options on many models.The wheel size available will alter the range of tyres available to be fitted. Standard wheel sizes on the Mazda 626 vary from 14x5.5 inches to 15x6 inches.
| Mazda 626 Model | Body Type | Front Tyre Size | Front Rim | Rear Tyre Size | Rear Rim | |
|---|---|---|---|---|---|---|
| SDX | Hatchback | — | 14x5.5 inches | — | 14x5.5 inches | |
| Eclipse | Hatchback | — | 14x5.5 inches | — | 14x5.5 inches | |
| SDX V6 | Hatchback | — | 14x6 inches | — | 14x6 inches | |
| Luxury V6 | Hatchback | — | 14x6 inches | — | 14x6 inches | |
| SDX | Sedan | — | 14x5.5 inches | — | 14x5.5 inches | |
| Eclipse | Sedan | — | 14x5.5 inches | — | 14x5.5 inches | |
| SDX V6 | Sedan | — | 14x6 inches | — | 14x6 inches | |
| Estate (5 Seat) | Wagon | — | 14x5.5 inches | — | 14x5.5 inches | |
| Estate (7 Seat) | Wagon | — | 15x6 inches | — | 15x6 inches | |
Mazda 626 1996 Dimensions
Dimensions for the 1996 Mazda 626 are dependent on which body type is chosen. The maximum width and height is 1750mm x 1450mm and can vary on the basis of model.
| Mazda 626 Model | Body Type | Height x Width x Length | Ground Clearance | |
|---|---|---|---|---|
| SDX | Hatchback | 1390x1750x4685 mm | 165 mm | |
| Eclipse | Hatchback | 1400x1750x4685 mm | 160 mm | |
| Eclipse | Hatchback | 1390x1750x4685 mm | 160 mm | |
| SDX V6 | Hatchback | 1390x1750x4685 mm | 160 mm | |
| SDX | Sedan | 1400x1750x4685 mm | 165 mm | |
| Eclipse | Sedan | 1400x1750x4685 mm | 160 mm | |
| SDX V6 | Sedan | 1390x1750x4685 mm | 160 mm | |
| Estate (5 Seat) | Wagon | 1450x1695x4610 mm | 170 mm | |
| Estate (7 Seat) | Wagon | 1450x1695x4610 mm | 170 mm | |
Mazda 626 1996 Towing capacity
The Mazda 626 has maximum towing capacity of 920kg. Some models also offer heavy-duty or towing option packs which can increase towing capacity, as well as options which can hamper towing capacity. Towing capacities can vary wildly on a large number of factors. These include engine, transmission, model, and options chosen. Always check with the manufacturer or in your vehicles handbook before attempting to tow anything.
| Mazda 626 Model | Body Type | Specs | Braked Capacity | |
|---|---|---|---|---|
| SDX | Hatchback | 2.0L,ULP,5 SP MAN | 920kg | |
| Eclipse | Hatchback | 2.0L,ULP,5 SP MAN | 920kg | |
| SDX | Hatchback | 2.0L,ULP,4 SP AUTO | 920kg | |
| Eclipse | Hatchback | 2.0L,ULP,4 SP AUTO | 920kg | |
| SDX | Sedan | 2.0L,ULP,5 SP MAN | 920kg | |
| Eclipse | Sedan | 2.0L,ULP,5 SP MAN | 920kg | |
| SDX | Sedan | 2.0L,ULP,4 SP AUTO | 920kg | |
| Eclipse | Sedan | 2.0L,ULP,4 SP AUTO | 920kg | |
| Estate (5 Seat) | Wagon | 2.2L,ULP,5 SP MAN | 920kg | |
| Estate (5 Seat) | Wagon | 2.2L,ULP,4 SP AUTO | 920kg | |
| Estate (7 Seat) | Wagon | 2.2L,ULP,4 SP AUTO | 920kg | |
