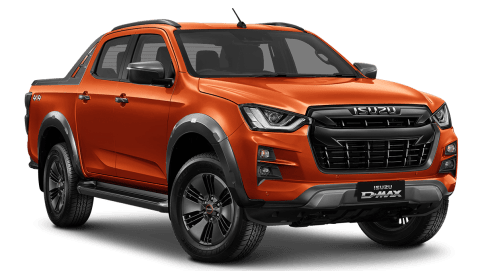

Isuzu D-Max Dimensions 2020

Height from

1685 mm

Width from

1775 mm

Length from

5020 mm

Dimensions for the Isuzu D-Max 2020 include 1685 mm height, 1775 mm width, 5020 mm length.

The height, measured from the ground to the top of the car, ranges from 1685 mm to 1855 mm depending on the variant. The width ranges from 1775 mm to 1880 mm. The length ranges from 5020 mm to 5325 mm. See the table below for a comprehensive list of dimensions for the Isuzu D-Max 2020 including the height, width, length and more for each vehicle.

Read More

Isuzu D-Max Complete Guide Search for other vehicle

Browse by year

Show All

2020 Isuzu D-Max Dimensions

Sx Low-Ride (4X2), 3.0L, Diesel, 6 SPEED MANUAL

Dimension	Metric	Imperial
Isuzu D-Max Height	1685 mm	5 ft 6 in
Isuzu D-Max Width	1775 mm	5 ft 10 in
Isuzu D-Max Length	5040 mm	16 ft 6 in
Isuzu D-Max Ground clearance unladen	190 mm	7 in
Isuzu D-Max Wheelbase	3095 mm	10 ft 2 in
Isuzu D-Max Weight	1530 kg	3373 lbs
Isuzu D-Max Turning circle	12.00 m	39 ft 4 in
Isuzu D-Max Tyre size	215/70 R15	215/70 R15
Isuzu D-Max Wheel size	165x381 mm	6.5x15 in

Note: The dimensions shown above are for the Isuzu Sx Low-Ride (4X2), 3.0L, Diesel, 6 SPEED MANUAL. To display dimensions about another variant, click on one of the rows in the table below.

All 2020 Isuzu D-Max dimensions

Dual Cab

2020 Isuzu D-Max	Specs	Height x Width x Length (mm)
Ls-M (4X4)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1785 x 1860 x 5295
Ls-T (4X4)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1855 x 1860 x 5295
Ls-T High-Ride (4X2)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1855 x 1860 x 5295
Ls-U (4X2)	Specs: 3.0L, Diesel, 6 SPEED AUTO SEQ SPORTS MODE	Height x Width x Length: 1790 x 1870 x 5265
Ls-U (4X4)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1855 x 1860 x 5190
LS-U Hi-Ride (4x2)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1855 x 1860 x 5295
Sx (4X2)	Specs: 3.0L, Diesel, 6 SPEED AUTO SEQ SPORTS MODE	Height x Width x Length: 1800 x 1870 x 5285
Sx (4X4)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1785 x 1860 x 5200
SX Hi-Ride (4x2)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1785 x 1860 x 5020
X-Runner Ltd Ed Red (4X4)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1855 x 1860 x 5295
X-Runner Ltd Ed White (4X4)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1855 x 1860 x 5295
X-Terrain (4X4)	Specs: 3.0L, Diesel, 6 SPEED AUTO SEQ SPORTS MODE	Height x Width x Length: 1810 x 1880 x 5280
Ls-M (4X4)	Specs: 3.0L, Diesel, 6 SPEED MANUAL	Height x Width x Length: 1785 x 1860 x 5295
Ls-U (4X4)	Specs: 3.0L, Diesel, 6 SPEED MANUAL	Height x Width x Length: 1855 x 1860 x 5190
Sx (4X4)	Specs: 3.0L, Diesel, 6 SPEED MANUAL	Height x Width x Length: 1785 x 1860 x 5200

Extra Cab

2020 Isuzu D-Max	Specs	Height x Width x Length (mm)
Ls-U (4X4)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1850 x 1860 x 5295
Sx (4X2)	Specs: 3.0L, Diesel, 6 SPEED AUTO SEQ SPORTS MODE	Height x Width x Length: 1785 x 1870 x 5265
Sx (4X4)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1780 x 1860 x 5040
SX Hi-Ride (4x2)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1780 x 1860 x 5200
Sx (4X4)	Specs: 3.0L, Diesel, 6 SPEED MANUAL	Height x Width x Length: 1780 x 1860 x 5040

Single Cab

2020 Isuzu D-Max	Specs	Height x Width x Length (mm)
Sx (4X2)	Specs: 3.0L, Diesel, 6 SPEED AUTO SEQ SPORTS MODE	Height x Width x Length: 1790 x 1870 x 5325
Sx (4X4)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1780 x 1860 x 5020
SX Hi-Ride (4x2)	Specs: 3.0L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 1780 x 1860 x 5040
Sx (4X2)	Specs: 3.0L, Diesel, 6 SPEED MANUAL	Height x Width x Length: 1790 x 1870 x 5325
Sx (4X4)	Specs: 3.0L, Diesel, 6 SPEED MANUAL	Height x Width x Length: 1780 x 1860 x 5020
Sx Low-Ride (4X2)	Specs: 3.0L, Diesel, 6 SPEED MANUAL	Height x Width x Length: 1685 x 1775 x 5040
