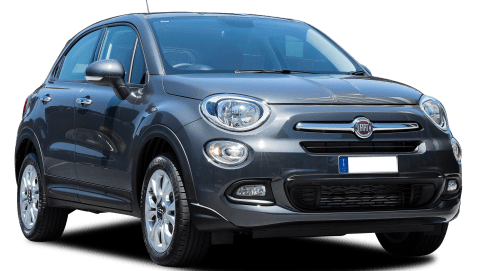

Fiat 500X Dimensions 2017

See the table below for a comprehensive list of dimensions for the Fiat 500X 2017 including the height, width, length and more for each vehicle. The height, measured from the ground to the top of the car, ranges from 1600mm to 1612mm depending on the variant. The width is 1796mm across all variants. The length is 4248mm across all variants.

Dimensions for the Fiat 500X 2017 include 1612mm height, 1796mm width, 4248mm length.
Fiat 500X Height1612mm
Fiat 500X Width1796mm
Fiat 500X Length4248mm
Fiat 500X Ground clearance unladen163mm
Fiat 500X Wheelbase2570mm
Fiat 500X Weight1405kg
Fiat 500X Turning circle11m
Fiat 500X Tyre size225/45 R18
Fiat 500X Wheel size18x7in

The dimensions shown above are for the Fiat 500X Cross Plus 1.4L, PULP, 9 SP AUTO .
To display dimensions about another variant, click on one of the rows in the table below

All Fiat 500X 2017 Models

SUV

Fiat 500X Cross Plus 1.4L, PULP, 9 SP AUTO >
Fiat 500X Lounge 1.4L, PULP, 9 SP AUTO >
Fiat 500X Pop 1.4L, ULP, 6 SP AUTO >
Fiat 500X Pop 1.4L, ULP, 6 SP MAN >
Fiat 500X Pop Star 1.4L, ULP, 6 SP AUTO >
