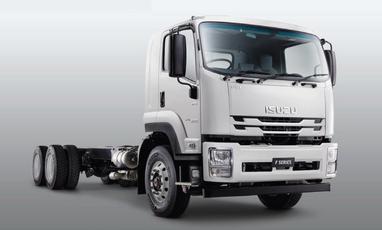

2023 Isuzu FVL Dimensions

240-300 (Lwb), 7.8L, Diesel, 6 SPEED AUTOMATIC

Dimension	Metric	Imperial
Isuzu FVL Height	2850 mm	9 ft 4 in
Isuzu FVL Width	2445 mm	8 ft 0 in
Isuzu FVL Length	11150 mm	36 ft 7 in
Isuzu FVL Wheelbase	6470 mm	21 ft 3 in
Isuzu FVL Weight	6850 kg	15102 lbs
Isuzu FVL Turning circle	22.60 m	74 ft 2 in
Isuzu FVL Tyre size	295/80 R22.5	295/80 R22.5
Isuzu FVL Wheel size	210x572 mm	8.25x22.5 in

Note: The dimensions shown above are for the Isuzu 240-300 (Lwb), 7.8L, Diesel, 6 SPEED AUTOMATIC. To display dimensions about another variant, click on one of the rows in the table below.

All 2023 Isuzu FVL dimensions

Single Cab

2023 Isuzu FVL	Specs	Height x Width x Length (mm)
240-300 (Lwb)	Specs: 7.8L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2850 x 2445 x 11150
240-300 (Lwb)	Specs: 7.8L, Diesel, 9 SPEED MANUAL	Height x Width x Length: 2850 x 2445 x 11150
