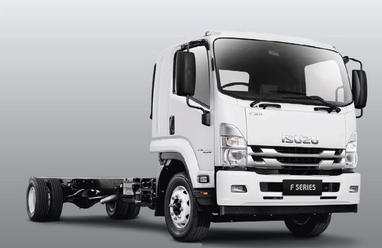

    Isuzu FSR Dimensions 2024

    Height from

    2665  mm

    Width from

    2120  mm

    Length from

    6555  mm
    Dimensions for the Isuzu FSR 2024 include 2665 mm height, 2120 mm width, 6555 mm length.

    The height, measured from the ground to the top of the car, is 2665 mm across all variants. The width ranges from 2120 mm to 2200 mm depending on the variant. The length ranges from 6555 mm to 10705 mm. See the table below for a comprehensive list of dimensions for the Isuzu FSR 2024 including the height, width, length and more for each vehicle.

    Read More

    Isuzu FSR Complete Guide Search for other vehicle
    Browse by year

    Show All

    2024 Isuzu FSR Dimensions

    140/120-240 (SWB), 5.2L, Diesel, 6 SPEED AUTOMATIC

    Dimension Metric Imperial
    Isuzu FSR Height 2665 mm 8 ft 9 in
    Isuzu FSR Width 2120 mm 6 ft 11 in
    Isuzu FSR Length 6555 mm 21 ft 6 in
    Isuzu FSR Wheelbase 3790 mm 12 ft 5 in
    Isuzu FSR Weight 3750 kg 8267 lbs
    Isuzu FSR Turning circle 13.60 m 44 ft 7 in
    Isuzu FSR Tyre size 265/70 R19.5 265/70 R19.5
    Isuzu FSR Wheel size 171x495 mm 6.75x19.5 in

    Note: The dimensions shown above are for the Isuzu 140/120-240 (SWB), 5.2L, Diesel, 6 SPEED AUTOMATIC. To display dimensions about another variant, click on one of the rows in the table below.

    All 2024 Isuzu FSR dimensions

    Single Cab

    2024 Isuzu FSR Specs Height x Width x Length (mm)
    120-260 (SWB) Specs: 7.8L, Diesel, 6 SPEED AUTOMATIC Height x Width x Length: 2665 x 2200 x 6555
    120-260 DC Specs: 7.8L, Diesel, 6 SPEED AUTOMATIC Height x Width x Length: 2665 x 2200 x 6555
    140/120-240 (LWB) Specs: 5.2L, Diesel, 6 SPEED AUTOMATIC Height x Width x Length: 2665 x 2120 x 8625
    140/120-240 (SWB) Specs: 5.2L, Diesel, 6 SPEED AUTOMATIC Height x Width x Length: 2665 x 2120 x 6555
    140/120-260 (LWB) Specs: 7.8L, Diesel, 6 SPEED AUTOMATIC Height x Width x Length: 2665 x 2200 x 9155
    140/120-260 (MWB) Specs: 7.8L, Diesel, 6 SPEED AUTOMATIC Height x Width x Length: 2665 x 2200 x 7705
    140/120-260 (XLWB) Specs: 7.8L, Diesel, 6 SPEED AUTOMATIC Height x Width x Length: 2665 x 2200 x 10705
    140/120-240 (LWB) Specs: 5.2L, Diesel, 6 SPEED MANUAL Height x Width x Length: 2665 x 2120 x 8625
    140/120-260 (LWB) Specs: 7.8L, Diesel, 6 SPEED MANUAL Height x Width x Length: 2665 x 2200 x 9155
    140/120-260 (MWB) Specs: 7.8L, Diesel, 6 SPEED MANUAL Height x Width x Length: 2665 x 2200 x 7705
    140/120-260 (XLWB) Specs: 7.8L, Diesel, 6 SPEED MANUAL Height x Width x Length: 2665 x 2200 x 10705
