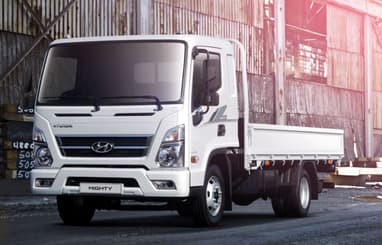

2025 Hyundai Trucks Mighty Dimensions

Ex6 Steel Tray (Mwb), 3.9L, Diesel, 6 SPEED AUTOMATIC

Dimension	Metric	Imperial
Hyundai Trucks Mighty Height	2275 mm	7 ft 6 in
Hyundai Trucks Mighty Width	2020 mm	6 ft 8 in
Hyundai Trucks Mighty Length	4350 mm	14 ft 3 in
Hyundai Trucks Mighty Ground clearance unladen	185 mm	7 in
Hyundai Trucks Mighty Wheelbase	3400 mm	11 ft 2 in
Hyundai Trucks Mighty Weight	3045 kg	6713 lbs
Hyundai Trucks Mighty Turning circle	12.60 m	41 ft 4 in
Hyundai Trucks Mighty Tyre size	205/75 R17.5	205/75 R17.5
Hyundai Trucks Mighty Wheel size	133x445 mm	5.25x17.5 in

Note: The dimensions shown above are for the Hyundai Trucks Ex6 Steel Tray (Mwb), 3.9L, Diesel, 6 SPEED AUTOMATIC. To display dimensions about another variant, click on one of the rows in the table below.

All 2025 Hyundai Trucks Mighty dimensions

Dual Cab

2025 Hyundai Trucks Mighty	Specs	Height x Width x Length (mm)
Ex4 Crew Cab (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2020 x 5300
Ex6 Crew Cab (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2020 x 6110
Ex4 Crew Cab (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 5300
Ex6 Crew Cab (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 6110

Other

2025 Hyundai Trucks Mighty	Specs	Height x Width x Length (mm)
Ex4 (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3020 x 2620 x 5595
Ex4 (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3000 x 2620 x 5595
Ex4 Chiller (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3020 x 2620 x 5595
Ex4 Chiller (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3000 x 2620 x 5595
Ex4 Freezer (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3020 x 2620 x 5595
Ex4 Freezer (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3000 x 2620 x 5595
Ex4 Premium Freezer (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3020 x 2620 x 5595
Ex4 Premium Freezer (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3000 x 2620 x 5595
Ex4 Premium Plus Freezer (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3020 x 2620 x 5595
Ex6 (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2390 x 4200
Ex6 (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3020 x 2020 x 5595
Ex6 Chiller (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3020 x 2390 x 4200
Ex6 Chiller (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3020 x 2020 x 5595
Ex6 Freezer (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3020 x 2390 x 4200
Ex6 Freezer (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3020 x 2020 x 5595
Ex6 Premium Freezer (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 3020 x 2020 x 5595
Ex4 (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2020 x 5595
Ex4 (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3000 x 2020 x 5595
Ex4 Chiller (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2020 x 5595
Ex4 Chiller (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3000 x 2020 x 5595
Ex4 Freezer (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2020 x 5595
Ex4 Freezer (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3000 x 2020 x 5595
Ex4 Premium Freezer (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2020 x 5595
Ex4 Premium Freezer (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3000 x 2020 x 5595
Ex4 Premium Plus Freezer (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2020 x 5595
Ex6 (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2390 x 4200
Ex6 (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2020 x 5595
Ex6 Chiller (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2390 x 4200
Ex6 Chiller (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2020 x 5595
Ex6 Freezer (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2390 x 4200
Ex6 Freezer (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2020 x 5595
Ex6 Premium Freezer (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2390 x 4200
Ex6 Premium Freezer (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2020 x 5595
Ex6 Premium Plus Freezer (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 3020 x 2390 x 4200

Single Cab

2025 Hyundai Trucks Mighty	Specs	Height x Width x Length (mm)
Ex4 Retail Spec (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2020 x 5300
Ex4 Standard Cab (Lwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2620 x 6620
Ex4 Standard Cab (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2620 x 6110
Ex4 Standard Cab (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2020 x 5300
Ex4 Steel Tray (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2620 x 6235
Ex4 Steel Tray (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2020 x 5310
Ex4 Super Cab (Lwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2620 x 6870
Ex4 Super Cab (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2620 x 6370
Ex6 Retail Spec (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2020 x 6110
Ex6 Standard Cab (Lwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2020 x 6620
Ex6 Standard Cab (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2020 x 6110
Ex6 Standard Cab (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2620 x 5300
Ex6 Steel Tray (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2020 x 4350
Ex6 Steel Tray (Swb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2620 x 5310
Ex6 Super Cab (Lwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2020 x 6870
Ex6 Super Cab (Mwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2275 x 2020 x 6370
Ex8 Super Cab (Elwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2285 x 2020 x 7370
Ex8 Super Cab (Lwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2285 x 2020 x 6870
Ex8 Super Cab Flat Deck (Elwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2425 x 2450 x 8095
Ex8 Super Cab Flat Deck (Lwb)	Specs: 3.9L, Diesel, 6 SPEED AUTOMATIC	Height x Width x Length: 2425 x 2450 x 7595
(base)	Specs: Electric, 1 SPEED AUTOMATIC	Height x Width x Length: 2295 x 2025 x 6140
Ex4 Retail Spec (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 5300
Ex4 Standard Cab (Lwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 6620
Ex4 Standard Cab (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 6110
Ex4 Standard Cab (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 5300
Ex4 Steel Tray (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 6235
Ex4 Steel Tray (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 5310
Ex4 Super Cab (Lwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 6870
Ex4 Super Cab (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 6370
Ex6 Retail Spec (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 6110
Ex6 Standard Cab (Lwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 6620
Ex6 Standard Cab (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 6110
Ex6 Standard Cab (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 5300
Ex6 Steel Tray (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 4350
Ex6 Steel Tray (Swb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 5310
Ex6 Super Cab (Lwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 6870
Ex6 Super Cab (Mwb)	Specs: 3.9L, Diesel, 5 SPEED MANUAL	Height x Width x Length: 2275 x 2020 x 6370
Ex8 Super Cab (Elwb)	Specs: 3.9L, Diesel, 6 SPEED MANUAL	Height x Width x Length: 2285 x 2020 x 7370
Ex8 Super Cab (Lwb)	Specs: 3.9L, Diesel, 6 SPEED MANUAL	Height x Width x Length: 2285 x 2020 x 6870
Ex8 Super Cab Flat Deck (Elwb)	Specs: 3.9L, Diesel, 6 SPEED MANUAL	Height x Width x Length: 2425 x 2450 x 8095
Ex8 Super Cab Flat Deck (Lwb)	Specs: 3.9L, Diesel, 6 SPEED MANUAL	Height x Width x Length: 2425 x 2450 x 7595
