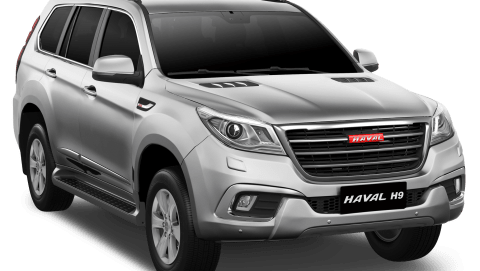

Haval H9 Dimensions 2019 - Length, Width, Height, Turning Circle, Ground Clearance, Wheelbase & Size

See the table below for a comprehensive list of dimensions for the Haval H9 2019 including the height, width, length and more for each vehicle. The height, measured from the ground to the top of the car is 1900mm across all variants. The width is 1926mm across all variants. The length is 4856mm across all variants.

Dimensions for the Haval H9 2019 include 1900mm height, 1926mm width, 4856mm length.
Haval H9 Height1900mm
Haval H9 Width1926mm
Haval H9 Length4856mm
Haval H9 Ground clearance unladen225mm
Haval H9 Wheelbase2800mm
Haval H9 Weight2230kg
Haval H9 Turning circle12.1m
Haval H9 Tyre size265/60 R18
Haval H9 Wheel size18x8in

The dimensions shown above are for the Haval H9 LUX 2.0L, PULP, 8 SP AUTO .
To display dimensions about another variant, click on one of the rows in the table below

All Haval H9 2019 Models


Haval H9 LUX 2.0L, PULP, 8 SP AUTO >
Haval H9 Ultra 2.0L, PULP, 8 SP AUTO >
