ACE EV V1 Transformer Review, For Sale, Price & Specs

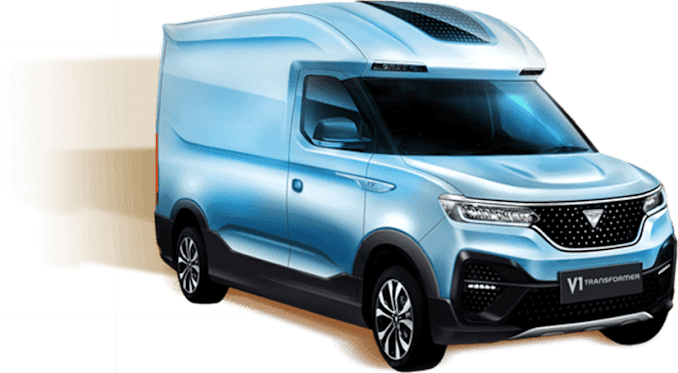

ACE EV V1 Transformer

FROM $65,000

Van

1 Speed Automatic

Electric

Electric range: 215 km

Year	Body Type	Specs	Price from	Price to
2027	Body Type: Van	Specs: Electric 1 SP AUTO	Price from: $65,000	Price to: $65,000
2027	Body Type: Van	Specs: Electric 1 SP AUTO	Price from: —	Price to: —
2027	Body Type: Van	Specs: Electric 1 SP AUTO	Price from: $61,600	Price to: $70,840
2027	Body Type: Van	Specs: Electric 1 SP AUTO	Price from: $60,940	Price to: $70,290
2026	Body Type: Van	Specs: Electric 1 SP AUTO	Price from: $65,000	Price to: $65,000
2025	Body Type: Van	Specs: Electric 1 SP AUTO	Price from: —	Price to: —
2024	Body Type: Van	Specs: Electric 1 SP AUTO	Price from: $61,600	Price to: $70,840
2023	Body Type: Van	Specs: Electric 1 SP AUTO	Price from: $60,940	Price to: $70,290

Year

Body Type

Specs

Price from

Price to

2027

Body Type: Van

Specs: Electric 1 SP AUTO

Specs: Electric 1 SP AUTO

Specs: Electric 1 SP AUTO

Specs: Electric 1 SP AUTO

Specs: Electric 1 SP AUTO

Specs: Electric 1 SP AUTO

Specs: Electric 1 SP AUTO

Specs: Electric 1 SP AUTO

Price from: $60,940

Price to: $70,290

ACE EV V1 Transformer Dimensions

The dimensions of the ACE EV V1 Transformer Van vary according to year of manufacture and spec level.

Year	Body Type	Height x Width x Length	Ground Clearance
2026	Body Type: Van	Height x Width x Length: 1895x1820x— mm	Ground Clearance: 200 mm
2025	Body Type: Van	Height x Width x Length: 1895x1820x— mm	Ground Clearance: 200 mm
2024	Body Type: Van	Height x Width x Length: 1895x1820x— mm	Ground Clearance: 200 mm
2023	Body Type: Van	Height x Width x Length: 1895x1820x— mm	Ground Clearance: 200 mm

The dimensions shown above are for the base model.

See all ACE EV V1 Transformer Dimensions

ACE EV V1 Transformer Wheel Size

The ACE EV V1 Transformer has a number of different wheel and tyre options. When it comes to tyres, these range from 185x65 R16C for Van in 2026 with a wheel size that spans from 5.5x15 inches.

Year	Body Type	Front Tyre Size	Front Rim	Rear Rim
2026	Body Type: Van	Front Tyre Size: 185x65 R16C	Front Rim: 5.5x15 in	Rear Rim: 5.5x15 in
2025	Body Type: Van	Front Tyre Size: 185x65 R16C	Front Rim: 5.5x15 in	Rear Rim: 5.5x15 in
2024	Body Type: Van	Front Tyre Size: 185x65 R16C	Front Rim: 5.5x15 in	Rear Rim: 5.5x15 in
2023	Body Type: Van	Front Tyre Size: 185x65 R16C	Front Rim: 5.5x15 in	Rear Rim: 5.5x15 in

See all ACE EV V1 Transformer Wheel Sizes

ACE EV V1 Transformer Towing Capacity

The ACE EV V1 Transformer has maximum towing capacity of 750kg for the latest model available.

Year	Body Type	Braked Capacity from	Braked Capacity to
2026	Body Type: Van	Braked Capacity from: 750kg	Braked Capacity to: 750kg
2025	Body Type: Van	Braked Capacity from: 750kg	Braked Capacity to: 750kg
2024	Body Type: Van	Braked Capacity from: 750kg	Braked Capacity to: 750kg
2023	Body Type: Van	Braked Capacity from: 750kg	Braked Capacity to: 750kg

See all ACE EV V1 Transformer Towing Capacity

ACE EV V1 Transformer Battery

Battery specifications for the ACE EV V1 Transformer depend on the model and variant chosen.

Year	Body Type	Battery Capacity	Electric Range	Energy Consumption	Battery Warranty
2026	Body Type: Van	Battery Capacity: 52.50 kWh	Electric Range: 215 km	Energy Consumption: 27.6 kWh/100km	Battery Warranty: 8 years / 160,000 km
2025	Body Type: Van	Battery Capacity: 52.50 kWh	Electric Range: 215 km	Energy Consumption: 27.6 kWh/100km	Battery Warranty: 8 years / 160,000 km
2024	Body Type: Van	Battery Capacity: 52.50 kWh	Electric Range: 215 km	Energy Consumption: 27.6 kWh/100km	Battery Warranty: 8 years / 160,000 km
2023	Body Type: Van	Battery Capacity: 52.50 kWh	Electric Range: 215 km	Energy Consumption: 27.6 kWh/100km	Battery Warranty: 8 years / 160,000 km
