GWM Cannon vs Volkswagen Caddy

What's the difference?

The latest version of the Cannon ute displays commendable improvement in key areas like drivetrain and chassis tuning, along with a benchmark 3500kg tow rating, heaps of standard equipment and a generous warranty for a list price well under $50K. For a tradie on a budget, it represents value that's hard to ignore.

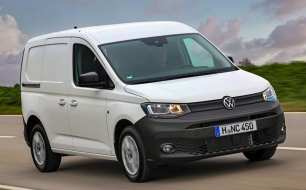

It’s not hard to see why the Caddy Cargo maintains its enduring favouritism in the small van class. It has outstanding workhorse capabilities, unmatched five-star safety and drivetrain choice, combined with a spirited car-like driving experience, be it unladen or with a heavy payload. It’s not perfect, but it's also hard to fault in a workhorse role.

The upgraded Cannon brings refreshed exterior styling, with the front fascia featuring a new grille and bumper design, larger fog lights and more subtle use of chrome highlights.

At the rear there’s more prominent (and permanent) brand identification with bold ‘GWM’ lettering embossed on the tailgate panel, which is a welcome blast from our pick-up past.

The spacious interior design has also been enhanced with use of what GWM calls ‘premium materials’ including soft-touch surfaces on the dash and door panels along with subtle chrome accents.

There’s also a new steering wheel and the centre console has been redesigned with less buttons and dials (not always a good thing) topped by the new multimedia touchscreen.

Our test vehicle rides on a 2755mm wheelbase with 4500mm overall length, yet its 11.4-metre turning circle is slightly larger than a Toyota HiAce mid-sized van, which highlights the restrictions in steering lock shared by front-wheel-drive vehicles like the Caddy and its French rivals.

Underneath you’ll find robust MacPherson strut front suspension, a coil-spring beam rear axle with Panhard rod, four-wheel disc brakes and electric power-assisted steering.

It comes well armoured for work duties with unpainted dark grey plastic used in areas where bumps, scrapes and wear usually occur like the front/rear bumpers (including the rear pillars from top to bottom), door-handles and door mirror-shells. The bright silver alloy-look plastic wheel-covers can also be easily replaced if damaged by kerbs to keep this van looking sharp on the job.

Its purposeful external appearance is matched by a neat and practical cabin design with wipe-clean rubber flooring and fabric-trimmed bucket seats for driver and passenger. Hard surfaces abound in contrasting shades of grey with splashes of satin chrome.

The minimalist dash design is achieved by corralling most functions into the comparatively small (by today's standards) central touchscreen including often-used climate control, engine auto start-stop etc., which can be fiddly and distracting when driving. Thankfully, at least physical dials for audio volume and tuning remain.

With its 2230kg kerb weight and 3225kg GVM, the Cannon Ultra has a 995kg payload rating (that’s close enough to a ‘one-tonner’ by our measure) and the latest upgrades include an increase in braked tow rating from the previous 3000kg to the class-benchmark 3500kg.

However, with its 6200kg GCM (or how much it can legally carry and tow at the same time) our test vehicle would require a substantial payload reduction of more than half a tonne (525kg) to tow its maximum trailer weight (but it’s not alone there).

And that would leave 470kg of payload capacity, most of which could be used up by the weight of a hefty five-member working crew before you could think about loading any of their tools and other equipment.

Fact is, few (if any) owners would need to tow 3500kg, but it’s important to be aware of these numbers if you do plan to tow that heavy and want to stay on the right side of the law.

The square load tub is 1520mm long and wide and 540mm deep, but with 1146mm between the rear wheel-housings it won’t fit a standard Aussie pallet. However, it will accommodate Euro pallets, if hauling such payloads is important.

The tub’s internal surfaces are protected by a spray-in liner and there are load-anchorage points front and back, with the rears close to floor level (ideal for all loads) and the fronts near the tops of the sidewalls (not ideal for low loads). The tailgate is equipped with hydraulic dampers to assist opening/closing and the handy fold-out step allows easy entry to the load tub.

Cabin storage includes a bottle holder and bin in each front door, a small lower dash compartment on the driver’s right and a slender bin above the glove box on the passenger side.

The centre console has a wireless phone-charging pad, 12V socket and two USB ports up front, plus cup/small-bottle holders and a lidded box at the back with an internal air conditioning cooling vent and sliding upper storage tray.

The rear seat has adequate legroom even for tall people, given I’m 186cm and have about 60mm of knee clearance when seated behind the driver’s seat in my position.

Headroom is adequate though not as generous and the deep contour in the roof lining to allow for the sunroof can make tall rear passengers feel a bit closed-in.

Shoulder room can also be squeezy for three large Aussies, so like all dual cab utes short of a full-size US pick-up it’s okay for short trips but ideal for two on longer drives.

There’s a bin and bottle-holder in each rear door and pockets on both front seat backrests. The 60/40-split seat bases can also fold up and by stored vertically for more internal load space, or to access wheel-changing equipment.

The Caddy’s 1508kg tare weight and 2250kg GVM results in a 742kg payload rating, of which up to 100kg can be legally carried on the roof where external anchorage points are provided for roof racks or rails.

It’s also rated to tow up to 1500kg of braked trailer, although its relatively low 75kg tow-ball download (TBD) limit could present a challenge, given that TBD is typically about 10 per cent of trailer weight. So, a 150kg TBD rating would be better.

Volkswagen also does not publish a GCM (Gross Combination Mass) rating, so we don’t know how much it can legally carry and tow at the same time.

The cargo bay, which offers up to 3.1 cubic metres of load volume, is accessed through a kerbside sliding door or asymmetric rear barn-doors.

Its 1797mm length and 1614mm width with 1230mm between the rear wheel-housings provides good versatility, given it can carry an 1165mm-square Aussie pallet or 1000 x 1200mm Euro 3 pallet, two 800mm x 1200mm Euro pallets, or two 720 x 830mm bread-roll containers.

However, with the sliding side-door’s 695mm opening, all of these would need to be loaded through the rear barn-doors which offer 180-degree opening for easy forklift or loading dock access. The load floor is protected by a thick moulded-rubber liner and there are six load-anchorage points.

The cargo bay walls and doors are lined to mid-height and there are two bright LED roof lights and a handy 12-volt socket.

Driver and passenger have ample cabin storage with large-bottle holders and bins in each front door, a handy pull-out compartment to the right of the steering column, numerous bins embedded in the dash-pad, full-width overhead shelf, a large glovebox and a centre console with dual small-bottle/cup holders and numerous storage nooks.

Our test vehicle in standard Candy White is the Cargo SWB, which at entry-level is available with a 1.5-litre turbo petrol engine with six-speed manual or seven-speed auto. Or you can step-up to a 2.0-litre turbo-diesel with either a six-speed manual or (like our example) a seven-speed auto for a price of $45,990 plus on-road costs.

That’s higher than its two small van competitors, given the Renault Kangoo SWB petrol auto lists at $42,990 and Peugeot’s Partner Pro Short petrol auto is $39,990, but the Cargo is unique in offering five-star safety and its drivetrain choices.

The work-focused standard equipment list includes 16-inch steel wheels with plastic covers, 205/60R16 tyres and a full-size spare. There’s also an electronic handbrake, separate cargo bay locking system, a reversing camera, rear parking sensors, heated door mirrors, daytime running lights, two USB-C ports and two 12-volt sockets.

A moulded composite bulkhead with window separates the cabin from the cargo bay. The driver also gets a leather-trimmed flat-bottom steering wheel with multi-function controls, plus adjustable lumbar support for both driver and passenger seats.

The four-speaker multimedia system is controlled by an 8.25-inch colour touchscreen with Apple CarPlay, Android Auto and MirrorLink connectivity and FM radio, but no DAB or (sorry, talkback fans) AM band.

Volkswagen also offers numerous paint colour options and four option packs, plus there’s a genuine accessories range containing useful workhorse items like all-weather floor mats, roof racks, cargo barriers, dashcams and more.

The Cannon's engine capacity has increased 20 per cent by adopting the Alpha's 2.4-litre four-cylinder turbo-diesel. It produces 135kW of power at 3600rpm and 480Nm of torque between 1500-2500rpm, which represents a 12.5 per cent power increase and 20 per cent more torque.

This is paired with GWM’s new homegrown nine-speed torque converter automatic (previously eight-speed) which has overdrive on the top three ratios and there are steering wheel paddle-shifters for sequential manual-shifting.

The 4x4 system is a ‘torque on demand’ design that transmits power to the rear axle under normal driving conditions to optimise fuel economy, but automatically sends power to the front axle if a loss of rear axle traction is detected.

It also offers a choice of selectable drive modes comprising 'Normal' (default), 'Sport' and 'Eco', plus 4H (4x4 High Range) and 4L (4x4 Low Range). The latter is only for the rough stuff, where the selectable electronic rear diff-lock could also come in handy.

Our test vehicle’s premium 2.0-litre four-cylinder turbo-diesel engine, dubbed TDI320, meets Euro6 emission standards using AdBlue, and produces 90kW at 4250rpm and 320Nm between 1500-2500rpm.

The seven-speed dual-clutch automatic offers three drive modes comprising (default) Drive, Sport or sequential manual-shifting using steering wheel-mounted paddles. There’s also an electronically-controlled automatic locking diff.

GWM claims official combined consumption of 8.4L/100km and the dash display was showing 9.6 at the completion of our 321km test, which comprised the usual mix of suburban, city and highway driving, of which about one third of that distance was hauling its maximum payload. The engine auto start/stop function was switched off for the duration.

Our own figure of 9.7L/100km, crunched from actual fuel bowser and tripmeter readings, was line-ball with the Cannon’s onboard calculation, which proved its accuracy. It also validated our test vehicle’s real-world sub-10L/100km consumption, which is excellent for a two-tonne-plus ute and gets a big thumbs-up from us.

Therefore, based on our test figure, you could expect a real-world driving range of around 800km from its 78-litre diesel tank.

The official combined average fuel consumption is a hybrid-like 4.9L/100km and the dash display was showing 5.6L after our 355km test, of which about one third of that distance was hauling a near-maximum payload.

That wasn’t far south of our own fuel-sipping figure of 6.5L/100km, based on actual tripmeter and fuel bowser readings. Therefore, you could expect an excellent real-world driving range of up to 770km from its 50-litre tank.

Even though there’s no adjustment for base-cushion rake or lumber support on the driver’s seat, we didn’t suffer any discomfort during our test. There are also three steering wheel assist modes to choose from comprising 'Light', 'Comfort' (default) and 'Sport'.

The new 2.4-litre engine effectively fills the gap that existed with the previous 2.0-litre, which felt underdone given this vehicle's size and weight. The big 20 per cent increase in torque is a noticeable improvement, as it pulls strongly from low rpm with gearing that keeps it within its peak zone most of the time.

It’s also relatively smooth and quiet and the three drive modes optimise performance in each setting. The Sport mode provides a noticeable increase in response, which in combination with the same setting for the steering is the most engaging drive experience.

The refined nine-speed auto is a sweet-shifting transmission in either auto or manual mode.

We were also pleasantly surprised by a big improvement in ride and handling, as this latest version of the Cannon feels like it finally has the beefier spring rates and damper settings this ute has been crying out for.

It’s also an effortless highway cruiser, with the overdriven top gear ensuring the engine requires less than 1800rpm to maintain 110km/h. However, although wind and engine noise is pleasantly low at these speeds, we did notice tyre noise emanating from the rear tyres into the cabin.

To test its GVM rating, we maxed out the payload to 990kg. This compressed the rear leaf-springs about 60mm, leaving around 40mm of static bump-stop clearance which ensured no bottoming-out on our test route.

It felt stable and sure-footed and the new drivetrain made light work of our 13 per cent gradient, 2.0km-long set climb at 60km/h, displaying ample pulling power in fourth gear to easily haul this load to the summit.

Engine-braking on the way down, in a manually-selected second gear, was arguably the best we’ve experienced in a sub-3.0-litre turbo-diesel with almost a tonne on its back.

Our only gripe is the emergency lane-keeping assist function, which needs more refinement as it creates weird fluctuations in steering weight and aggressively tugs at the wheel when you get anywhere near a white line.

Fortunately, this can be disabled in the vehicle settings menu, but unfortunately must be switched off before each drive.

Its compact external dimensions are deceptive, as the cabin has ample headroom and it’s not hard for even tallish drivers (I’m 186cm) to find a comfortable position, even though the close-fitting bulkhead restricts backrest recline adjustment and the base cushion rake is fixed.

Small vans are the closest you’ll get to a car-like driving experience in light commercials and, given the Cargo’s unique turbo-diesel powertrain, it has unmatched torque output that provides energetic performance.

The shift calibrations of its seven-speed dual-clutch automatic ensure vigorous response in city and suburban driving, given that for most of the time they keep the engine operating between 1500-2500rpm, where its 320Nm of torque is served at full strength.

Combined with nicely weighted steering and four-coil suspension that provides an ideal balance of responsive handling and supple bump absorption, it’s an enjoyable and engaging vehicle to drive. The Sport drive mode and sequential manual-shifting options raise the fun level.

The gearing also ensures low-stressed highway driving with only 1600rpm required to maintain 110km/h, at which speeds the solid bulkhead minimises cargo bay noise that mostly emanates from the rear tyres. However, tyre noise can still be intrusive on certain grades of coarse bitumen.

To test its payload rating, we forklifted 650kg into the cargo bay through the rear barn-doors, which with driver equalled a total payload just shy of its 742kg payload limit. The rear suspension compressed almost 60mm under this weight, with long jounce rubbers positioned inside the rear coil springs providing additional load support and, in effect, a second stage of springing.

The Caddy took this heavy load haul in its stride on city and suburban roads, gliding over bumps without a hint of bottoming-out. The payload’s effect on engine, steering and braking performance was minimal and its handling composure was maintained regardless of speed or road conditions.

It also made light work of our 13 per cent gradient, 2.0km-long set climb at 60km/h, and although engine braking on the way down required some assistance from the quartet of disc brakes to keep speeds in check, they handled this task with ease.

Our only criticism of the driving experience is that, given the substantial blind-spot over the driver’s left shoulder caused by the cargo bay’s solid walls, a Cargo buyer must pay extra to get blind-spot monitoring and rear cross-traffic alert as part of an options pack. We reckon these active features are crucial to safe van operation (any solid-walled van that is) and should be standard.

Unmatched by its small van rivals is a five-star ANCAP rating (tested 2021, expires 2027) which applies to all Cargo variants built from July 2022.

It’s equipped with seven airbags, AEB with pedestrian and cyclist monitoring, a reversing camera, rear parking sensors, daytime running lights, non-adaptive cruise control, driver fatigue alert system and more, but you must pay extra for extra safety.

Like all GWM Cannons, our test vehicle comes with a generous seven-year/unlimited km warranty, which includes five years of roadside assist. Apart from the first service at 12 months or 10,000km, scheduled servicing is every 12 months/15,000km, whichever occurs first.

GWM offers capped-pricing for the first five scheduled services (60 months or 70,000km), which totals $2530, or an average of $506 per service.

The Caddy comes with a five-year/unlimited-kilometre warranty and 12 months roadside assist.

Scheduled servicing is every 15,000km or 12 months, whichever occurs first.

An optional five-year pre-paid service package is available for the price of a three-year package ($2000), so that’s two free services and savings of up to $1439 compared to pay-as-you-go capped-price servicing. In other words, an average annual servicing cost of $400.
